Cisco Catalyst 9800 Conversion Guide

Prerequisites

• Cisco IOS XE system must be running 17.9 or later.
• Guide assumes the network is using an on-prem 9800 Controller.
• Wi-Fi system has AP(s) linked to the 9800 WLC Controller.
• Cisco system has basic traffic routing working with existing SSID(s).
• An Intel-based host is required in the network to run the RadSecProxy container.

High Level Steps

1. Deploy RadSecProxy container and record IP address of host
2. Build WLAN Helium Passpoint SSID
   1. Build a RADIUS Server and Group
   2. Create a AAA Method List
   3. Add the NAS-ID to the WLAN AAA Policy
   4. Build Hotspot 2.0 Profile
   5. Build the Helium SSID
   6. Apply Policy and Hotspot Profile to the SSID
   7. Create Policy Tag
   8. Apply Tag to APs

Deploy RadSecProxy Container

RADIUS messages used to authenticate users and for session accounting are transmitted unsecured and over UDP by default. By directing these messages internally in your secure network to a RadSecProxy, the UDP is then converted to a TLS protected TCP connection to the Helium Network core AAA servers.

Prerequisites

• An intel based machine with Docker installed.
• The intel based machine has a private IP in your network reachable from your 9800 WLC Controller
• ACLs or Firewalls allow 9800 WLC Controller and Docker Container to communicate UDP on port 1812 and 1813
• ACLs or Firewalls allow container/host to reach the internet on TCP ports 2083 and 3802.

Container Deployment

1. Un-zip and untar the Helium_RadSec_Docker.tar.gz file into the directory of your choice on the host machine. This will unpack the following items:
   1. Dockerfile - The docker instructions on how to build the container
   2. Radsecproxy.conf - The radsecproxy config file is pre-populated to connect to Helium Network AAA servers
   3. docker-compose.yml - File to start and stop the container as a daemon.

tar -xvzf Helium_RadSec_Docker.tar.gz

2. Into the same directory copy the 3 certificates obtained from Helium Network
   1. ca.pem - the root CA certificate
   2. cert.pem - the user certificate
   3. key.pem - the key file matched to the certificate
3. Start the container using:

sudo docker compose up -d

4. If/when needed, stop the container using:

sudo docker compose down

Build Meraki Helium Passpoint SSID

The following steps will configure your Cisco 9800 WLC system to broadcast an SSID with the needed Passpoint and RADIUS configurations to support Helium Mobile user offload.

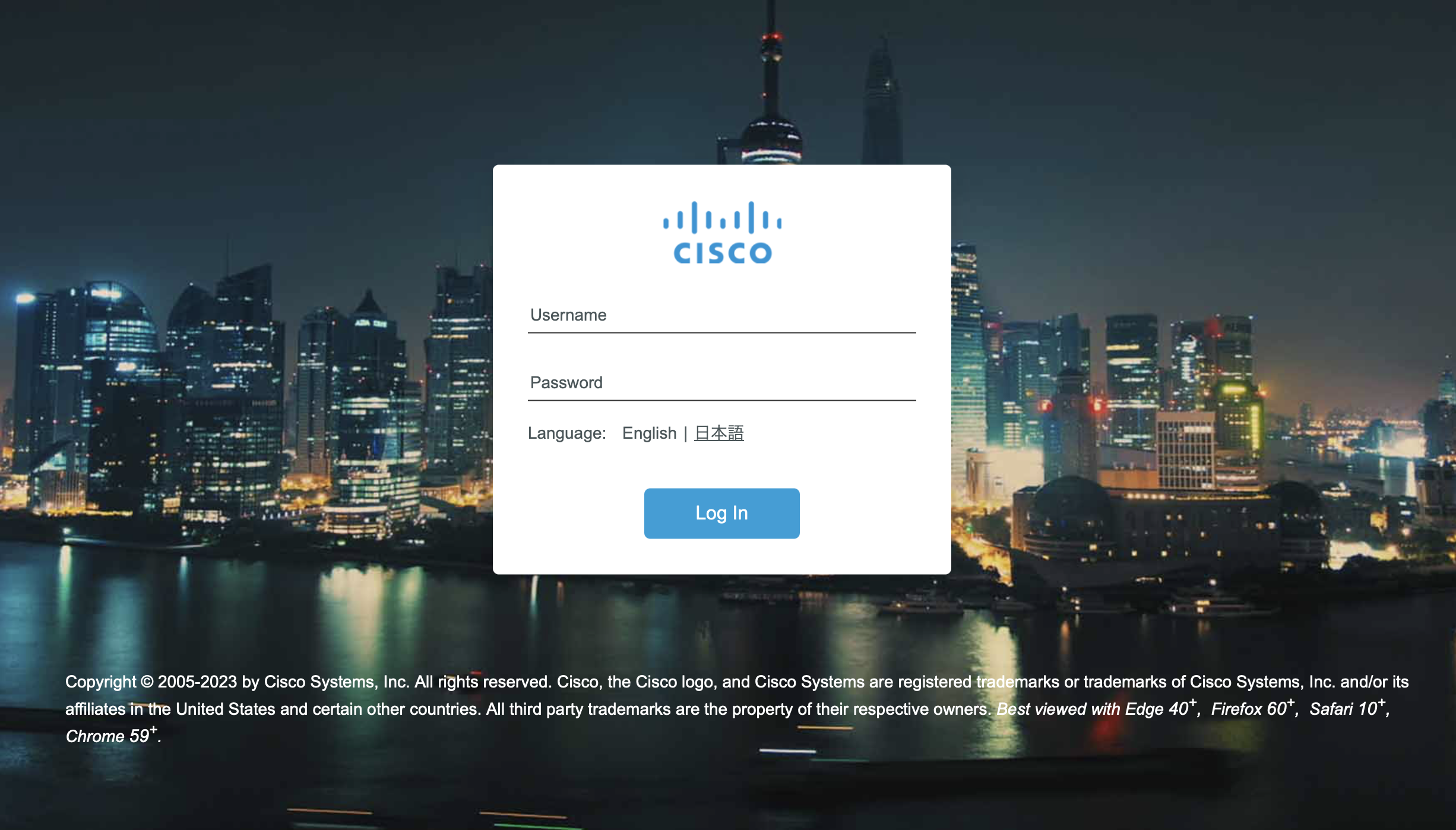

To start login to your Cisco 9800 Dashboard in your browser, this will be our starting point for all major steps below

note

In the following steps we will only mention mandatory fields to set. Most windows will have many other parameters with default values set. Leave any unmentioned parameter at it's default value.

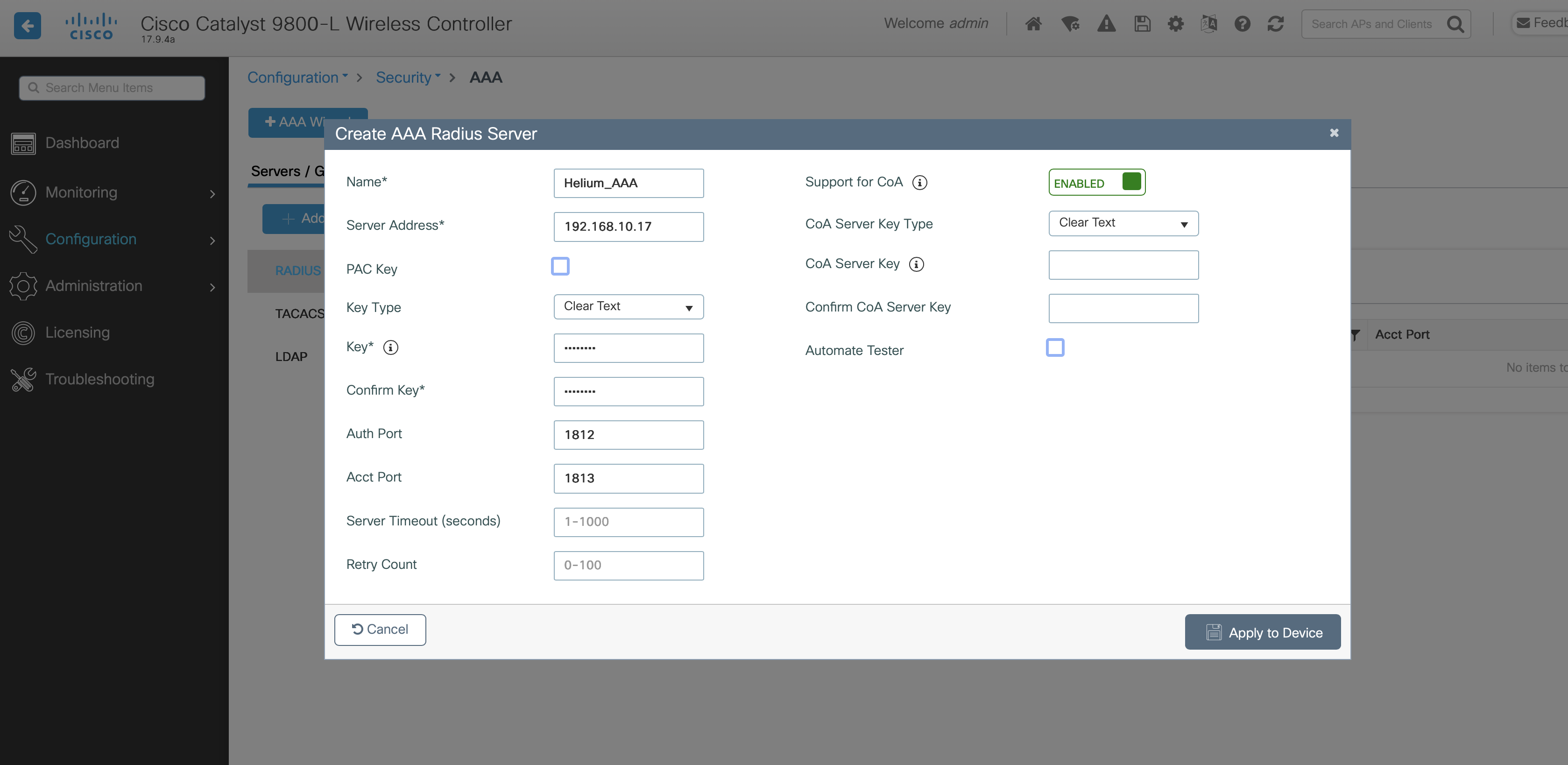

Build a RADIUS Profile

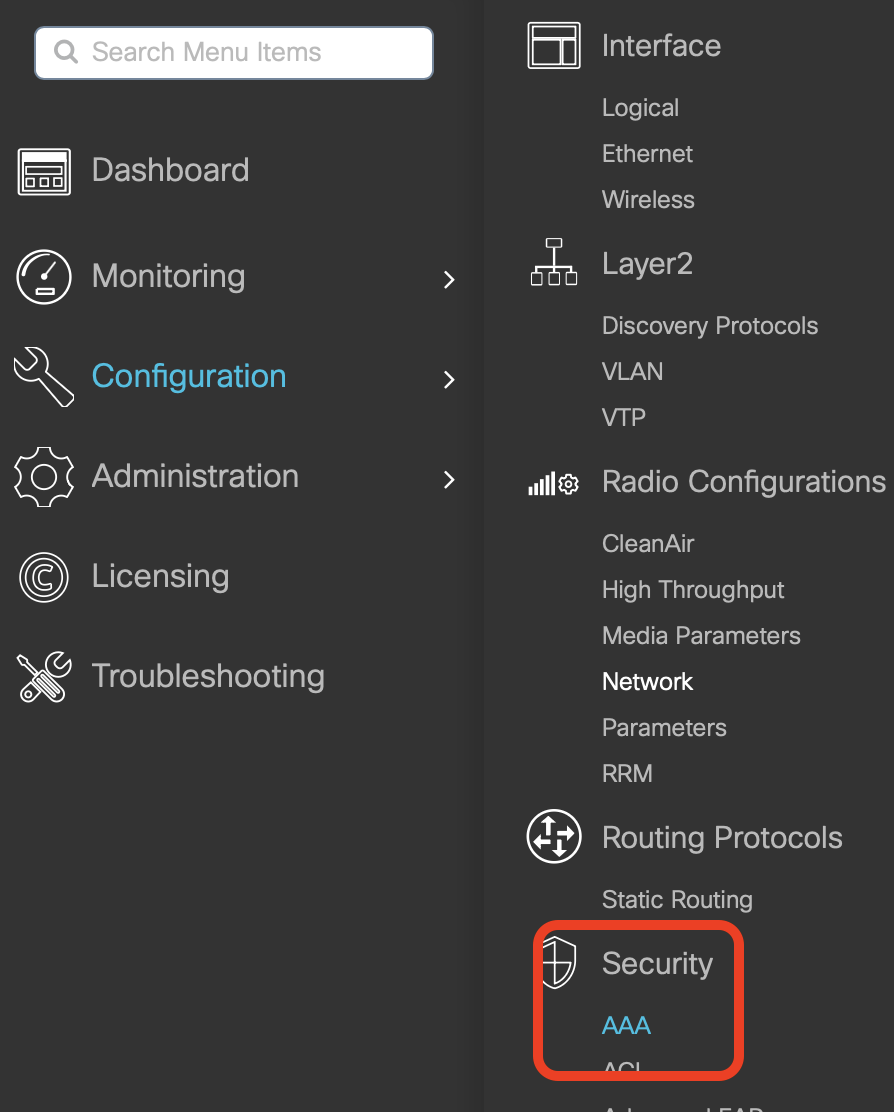

1. Click on Configuration -> Security -> AAA in the left menu column

2. Confirm RADIUS is selected in left column and Click +Add in the top left
3. Enter a Name e.g. Helium_AAA
4. Enter a Server Address with the IP of the RadSecProxy you installed earlier.
5. Enter the Key and Confirm Key fields equal to "mysecret" (modify if you have modified during the RadSecProxy container installtion)
6. Confirm the Auth Port and Acct Port are 1812 and 1813 respectively



7. Click Apply to Device

NOTE If you have installed multiple RadSecProxy instances for redundancy, repeat the server creation for each instance incrementing the names with an integer e.g. Helium_AAA_1

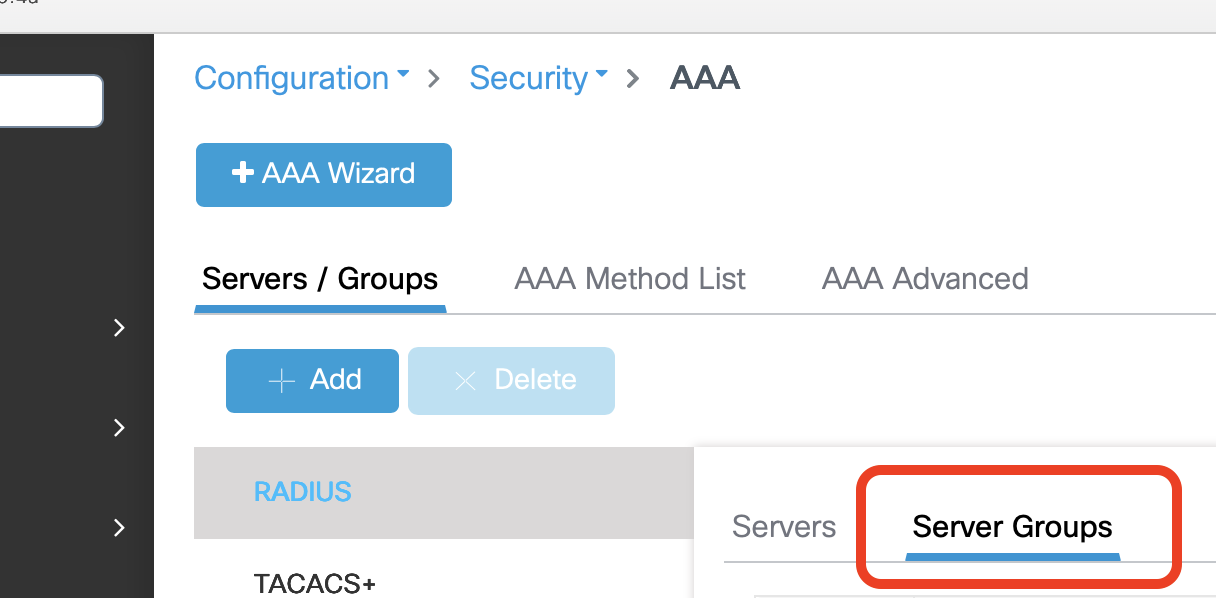

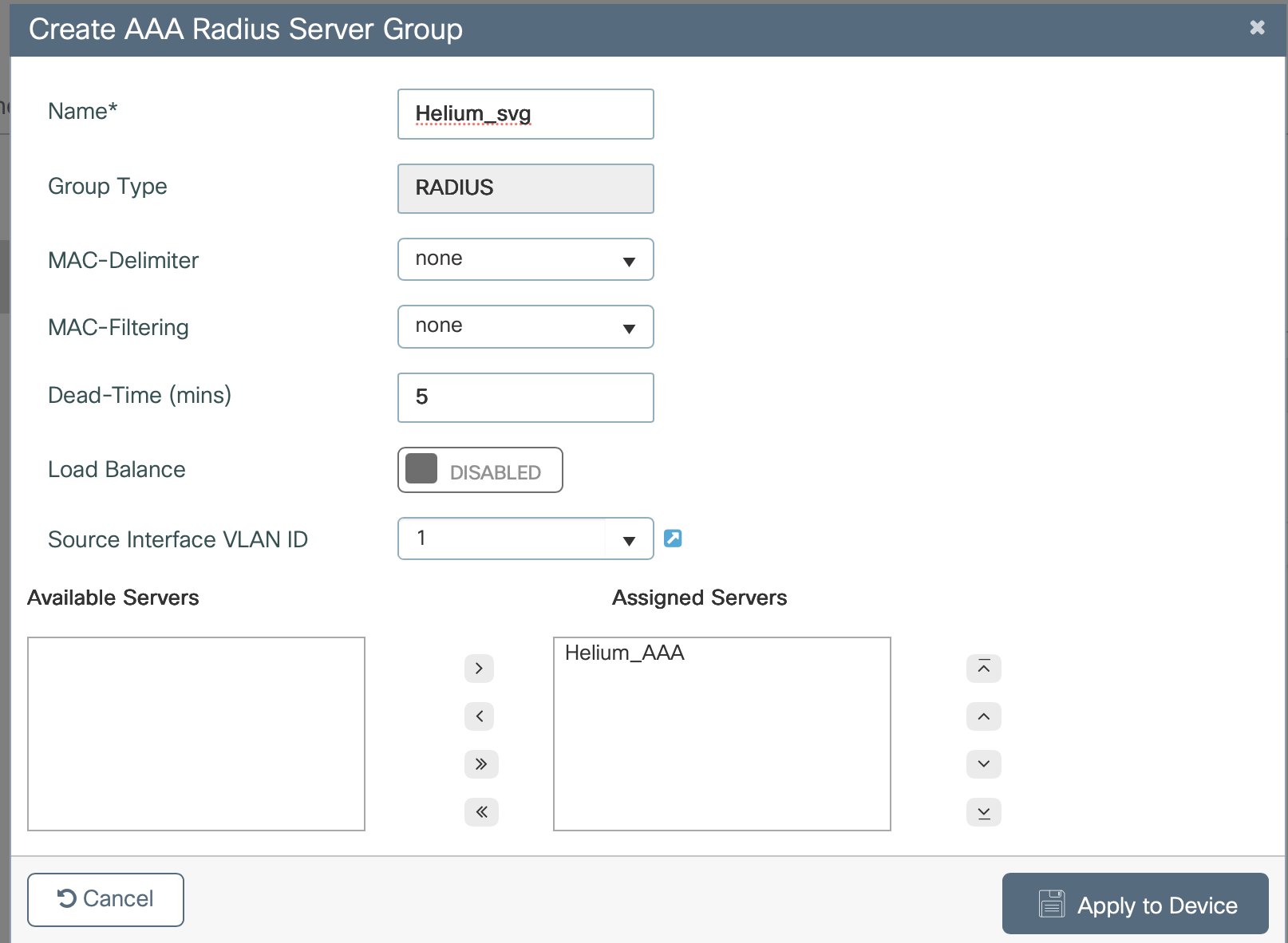

8. Click on Server Group



9. Click on +Add
10. Enter a Name e.g. "Helium_svg"
11. Select your AAA servers and use the arrows to move them into the Assigned Servers list



12. Click Apply to Device

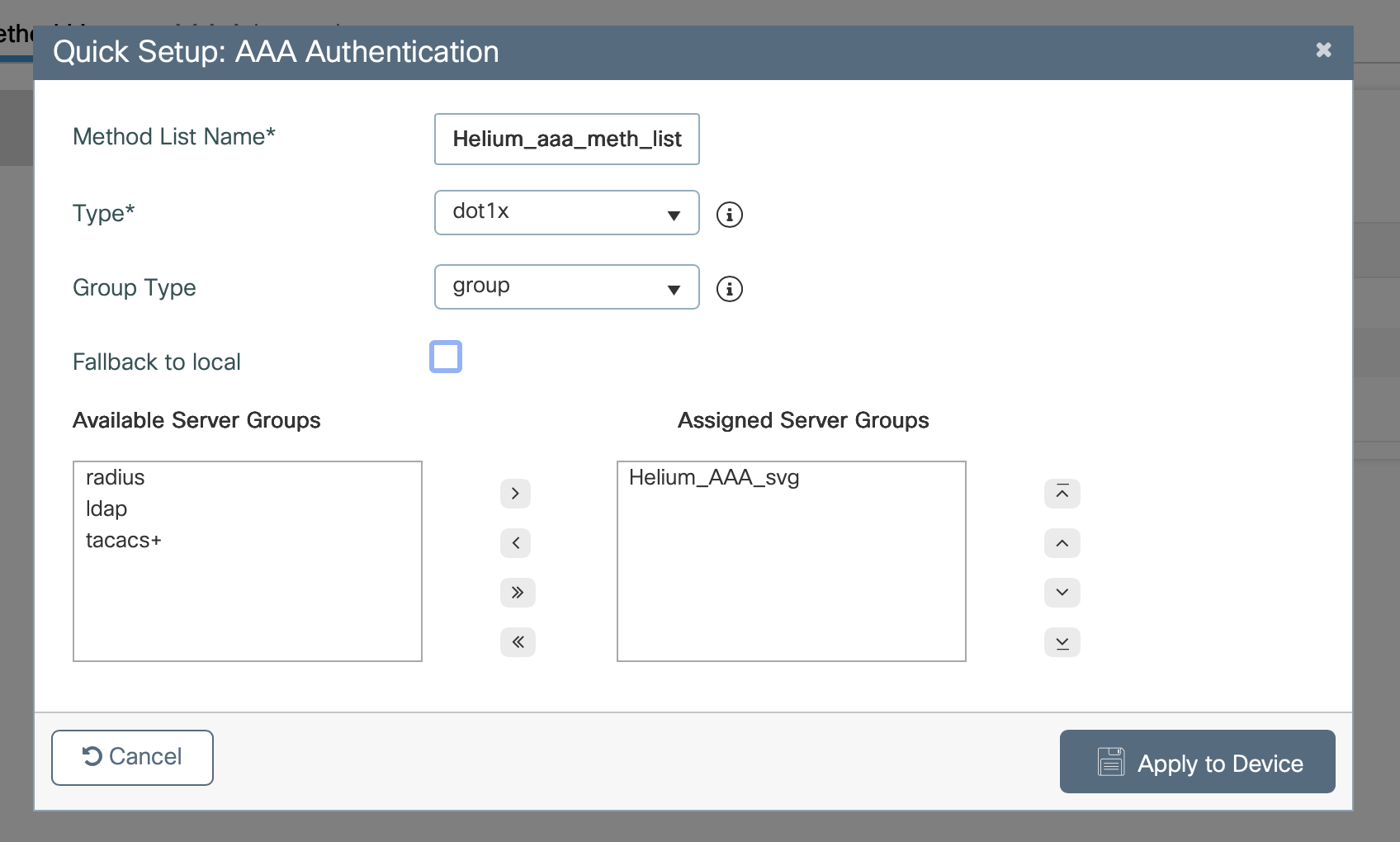

Create a AAA Method List

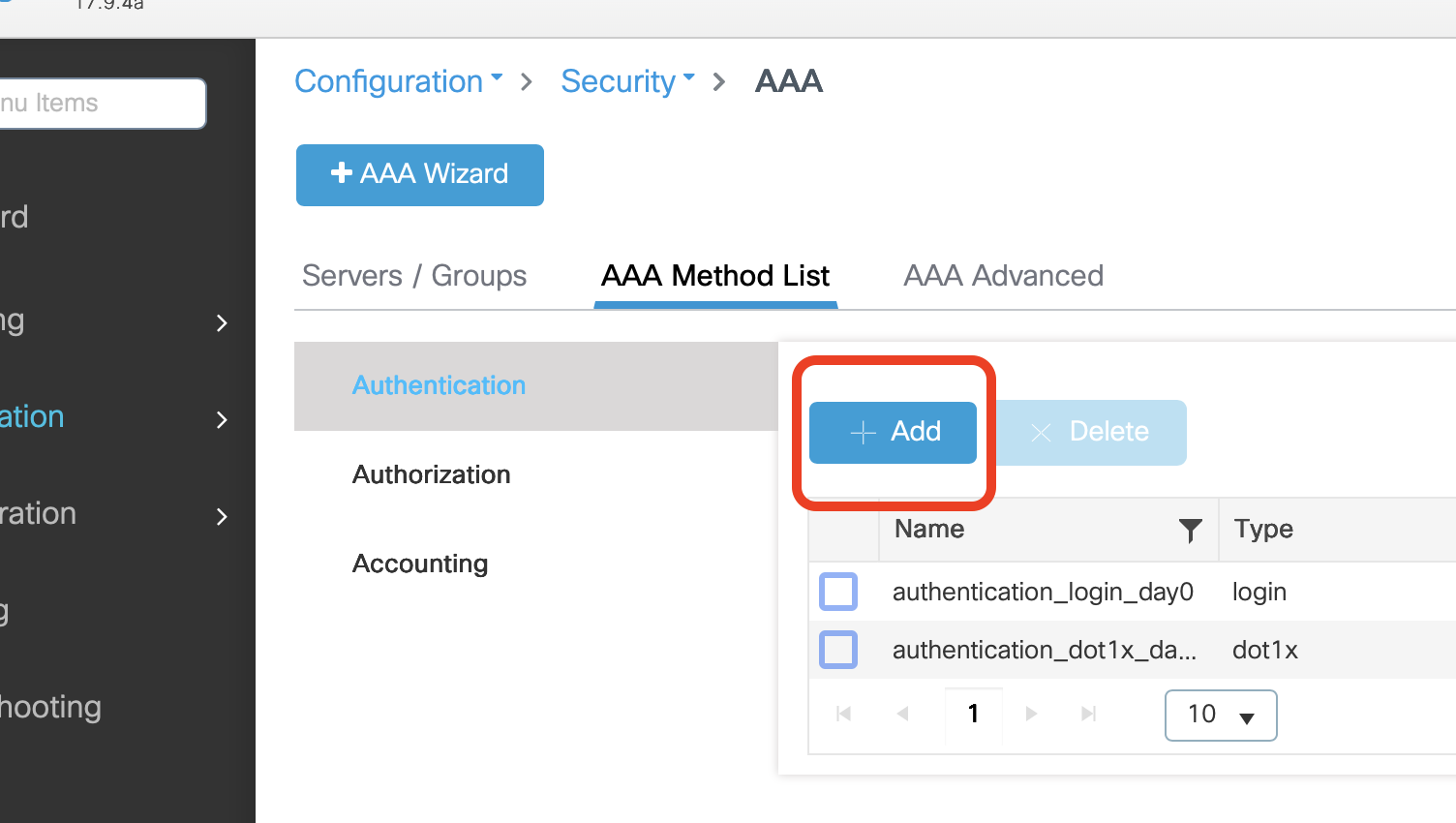

1. Click AAA Method List



2. Click +Add in the lower box



3. Enter a Name e.g. Helium-aaa-meth-list
4. In Type dropdown select dot1x
5. Select your Server Group in the list and use the arrows to move it to Assigned Server Groups



6. Click Apply to Device

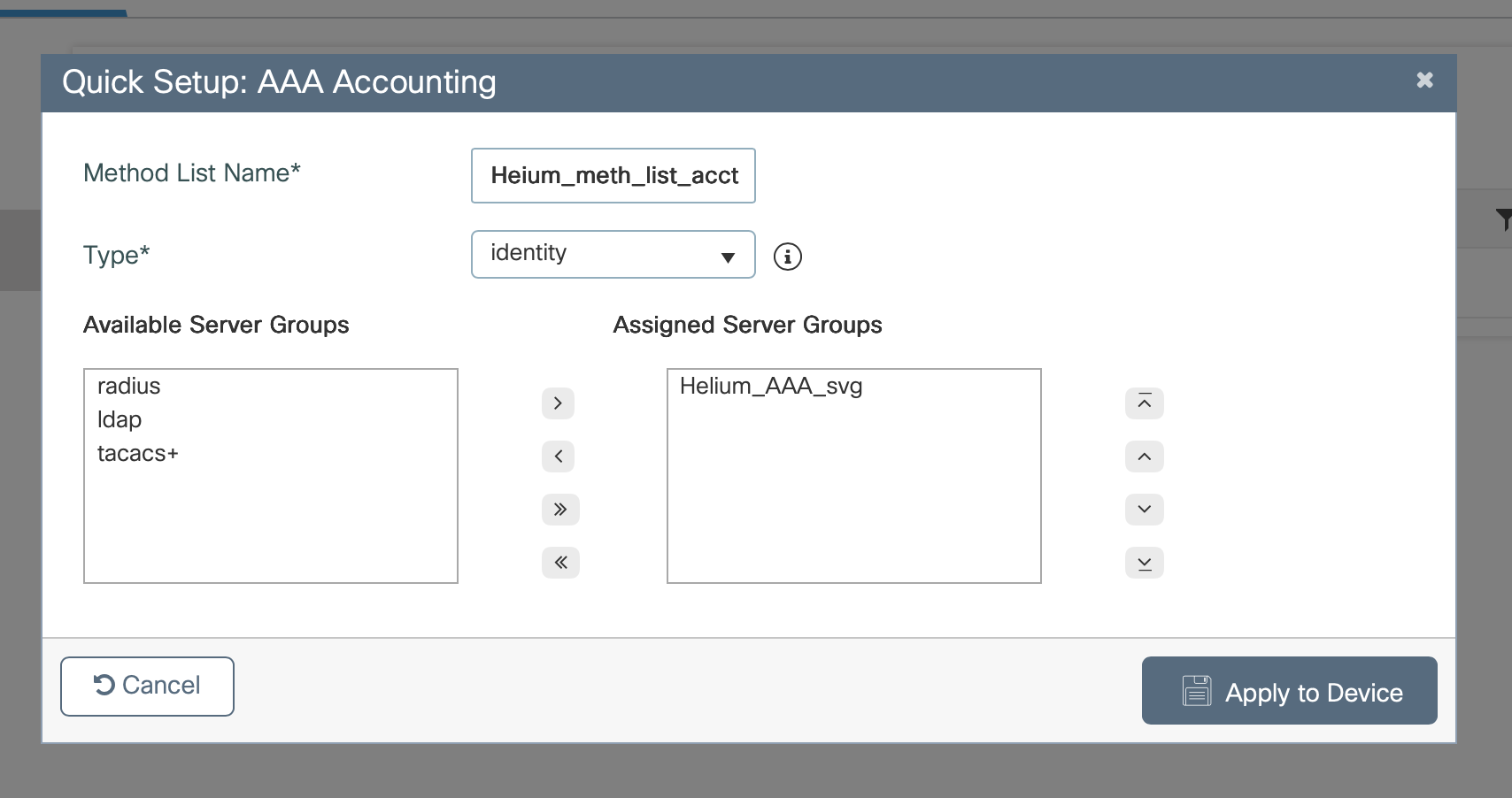

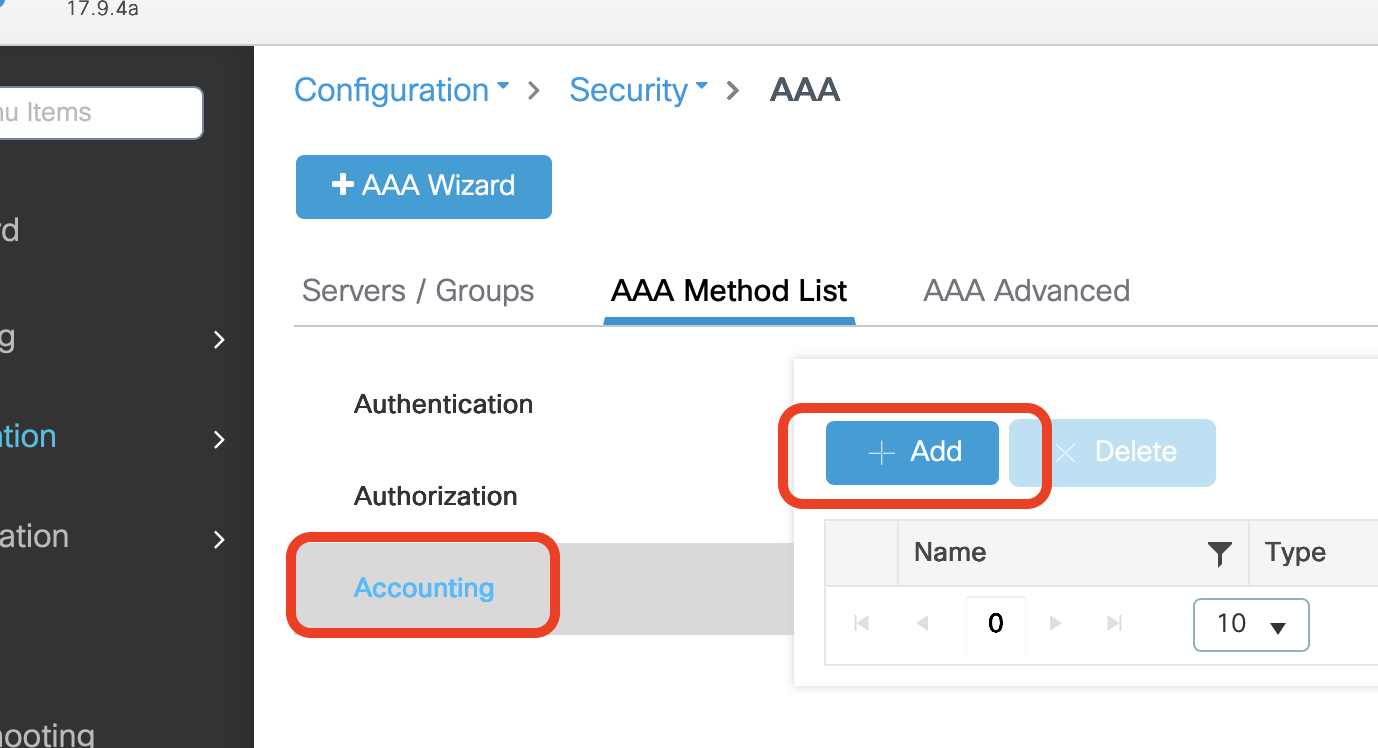

7. From the left column select Accounting and then click +Add



8. In Method List Name enter Helium_meth_list_acct
9. In the Type dropdown select Identity
10. Select your Server Group and use the arrows to move it into the Assigned Server Group



11. Click Apply to Device

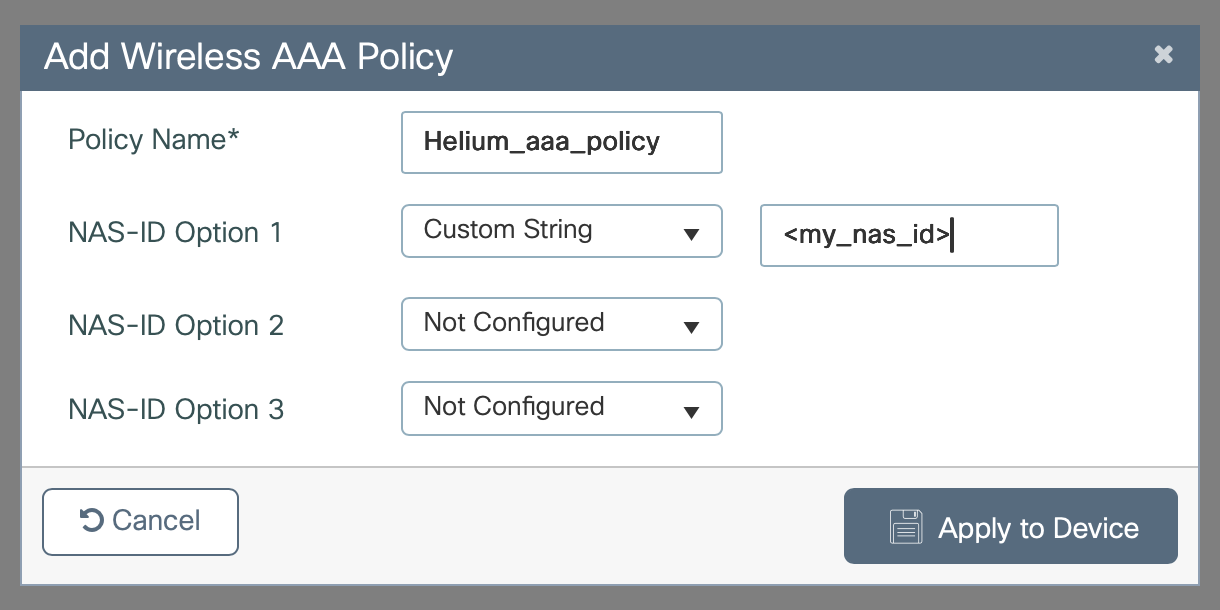

Add the NAS-ID to the WLAN AAA Policy

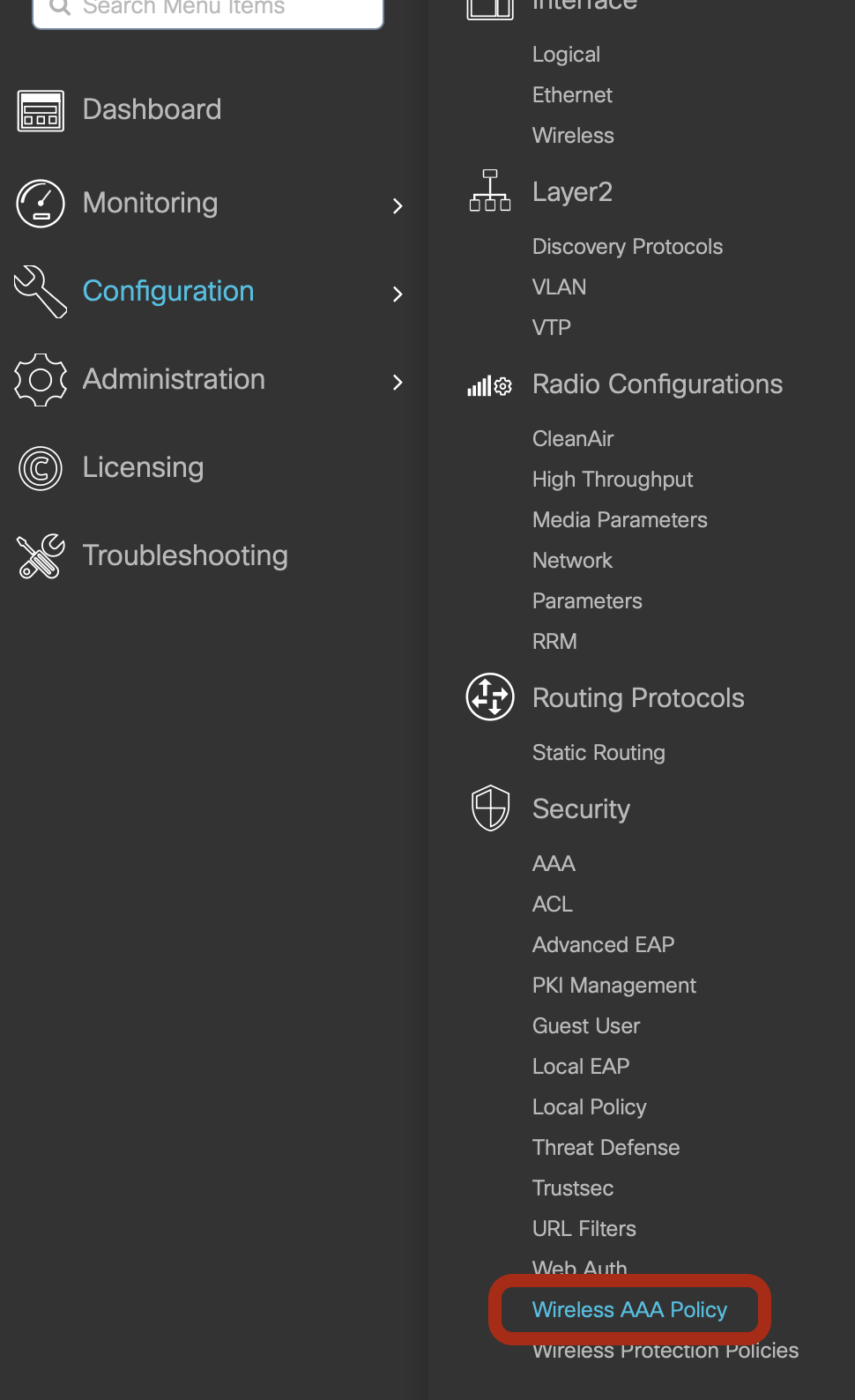

1. Click on Configuration -> Security -> Wireless AAA Policy



2. Click on +Add

3. Enter a Name e.g. Helium_aaa_policy

4. In the NAS-ID Option 1 drop down select Custom

5. Enter the NAS_ID shared with you by Helium



6. Click Apply to Device

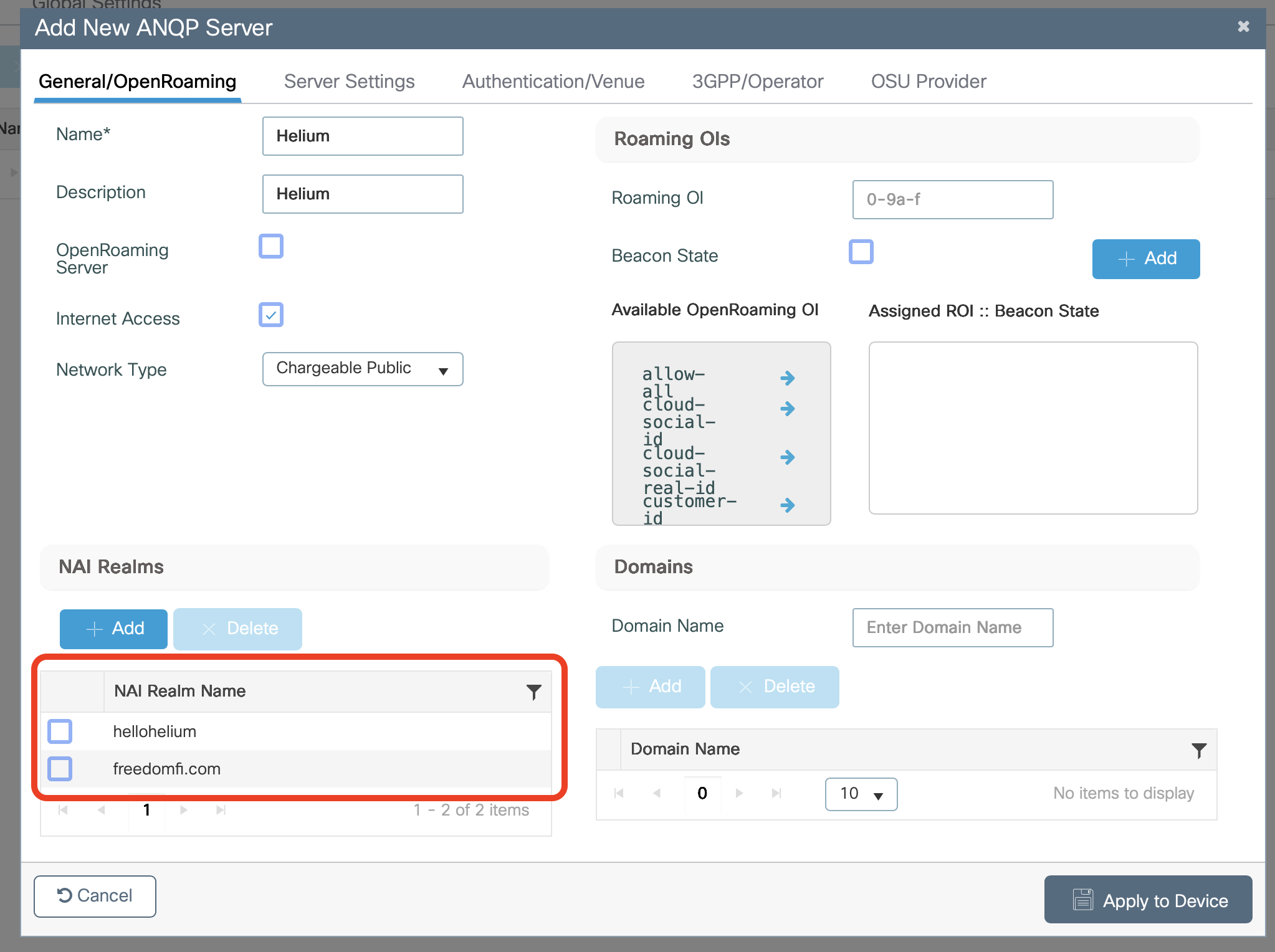

Build Hotspot 2.0 Profile

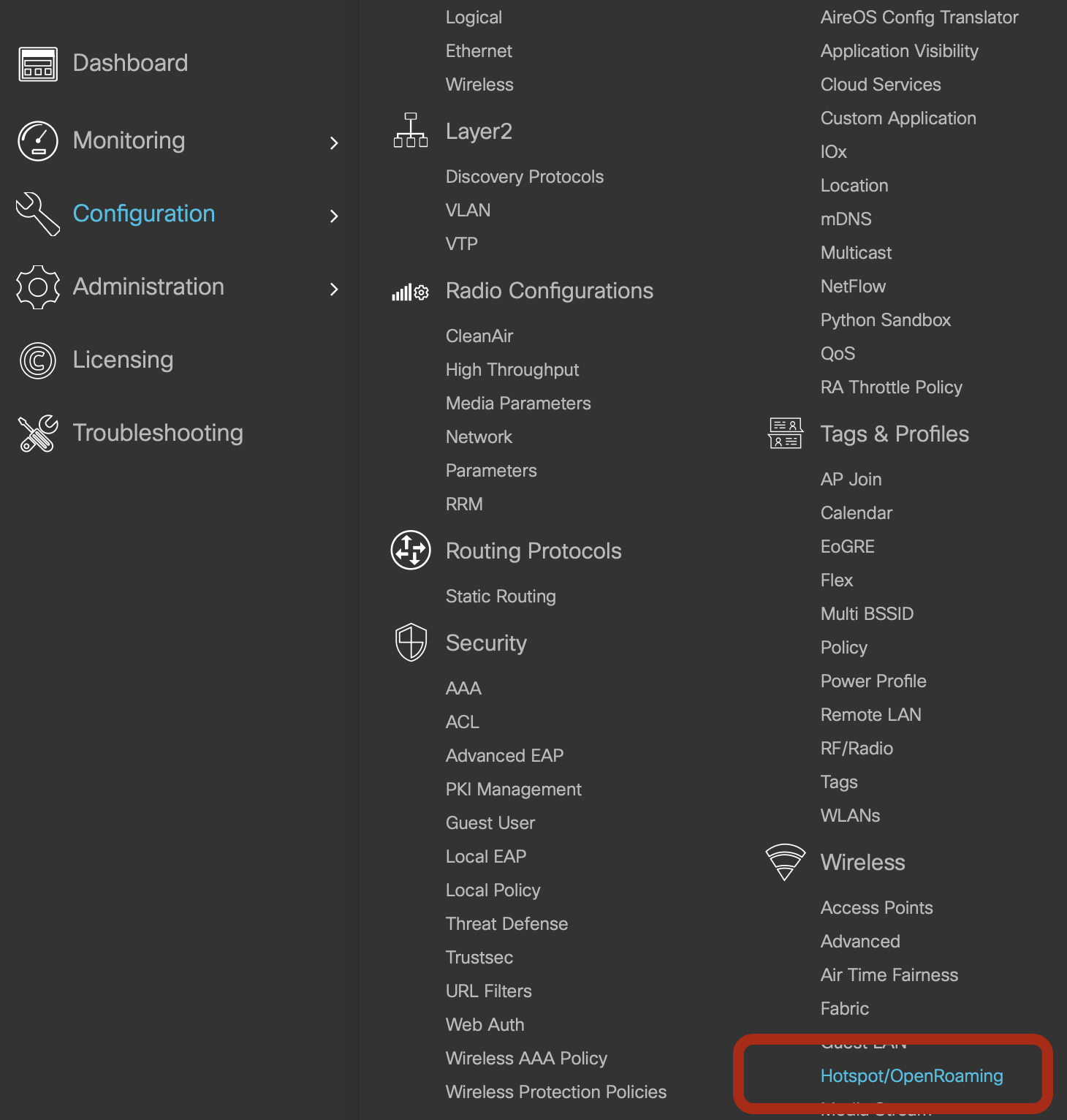

1. Click on Configuration -> Wireless -> Hotspot/OpenRoaming



2. Click +Add under ANQP Servers

3. Enter Name as Helium

4. Enter Description as Helium

5. Check the box for Internet Access

6. In the Network Type drop down select Chargable Public

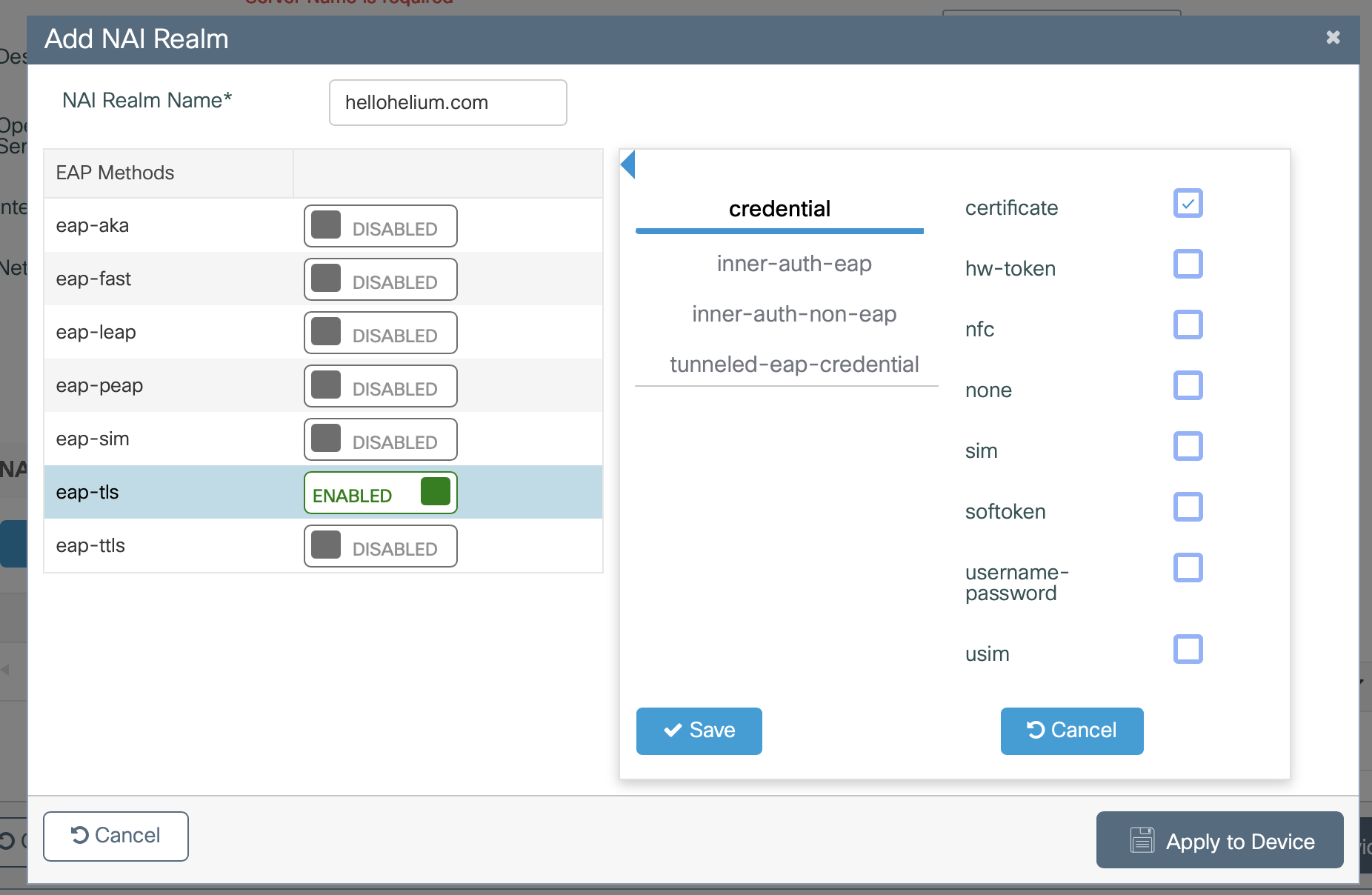

7. Click +Add under NAI Realm

8. Enter NAI Realm Name as helloheium.com

9. Click to Enable the EAP-TLS option

10. Check the box for certificate

11. Click Save

12. Click Apply to Device



13. Repeat the steps to add a second NAI realm for freedomfi.com

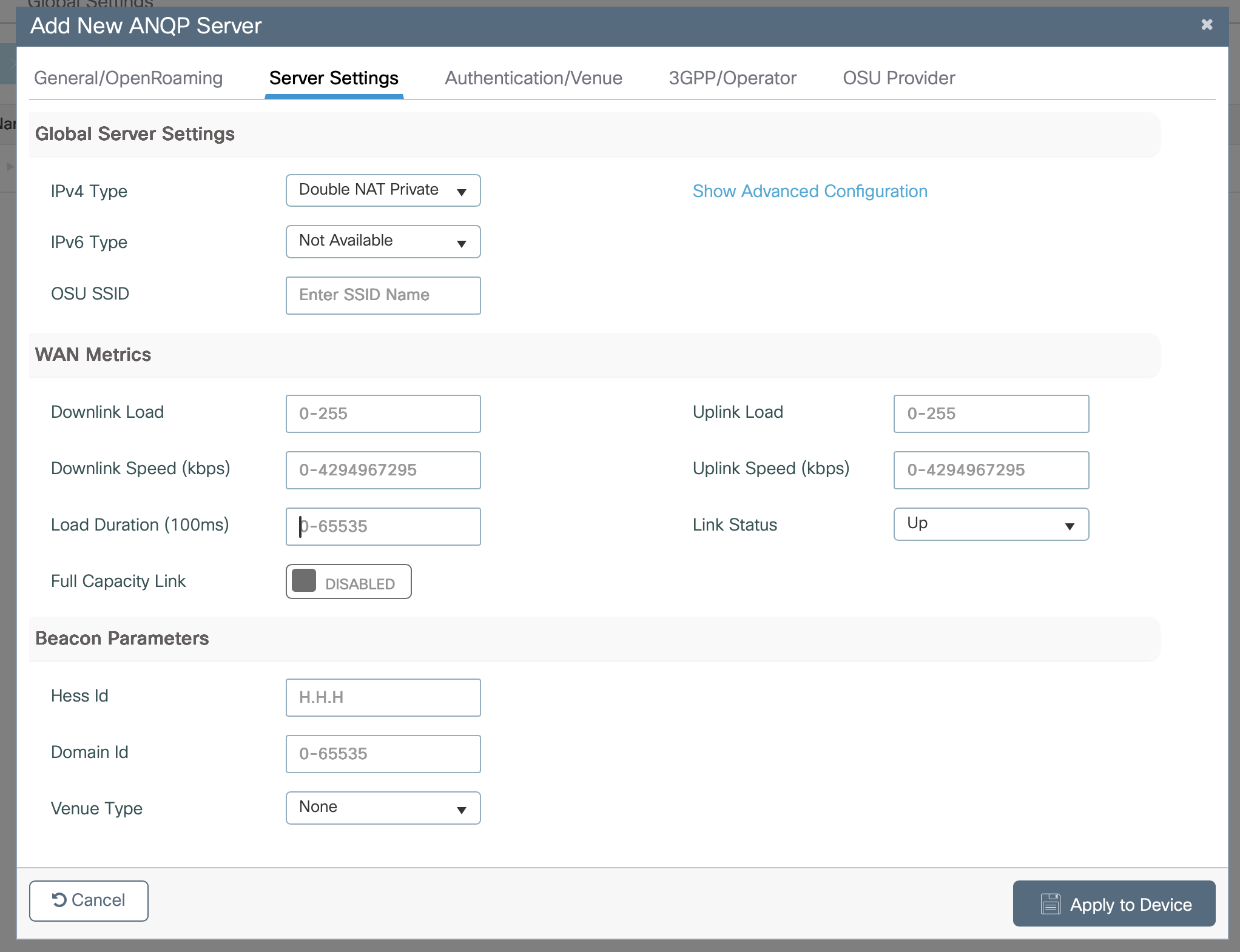

14. At the top of the window select Server Settings

15. In the drop down for IPv4 Type select Double NAT Private (or option that appropriately describes your network)

16. In the drop down for IPv6 Type select Not Available



17. Click Apply to Device

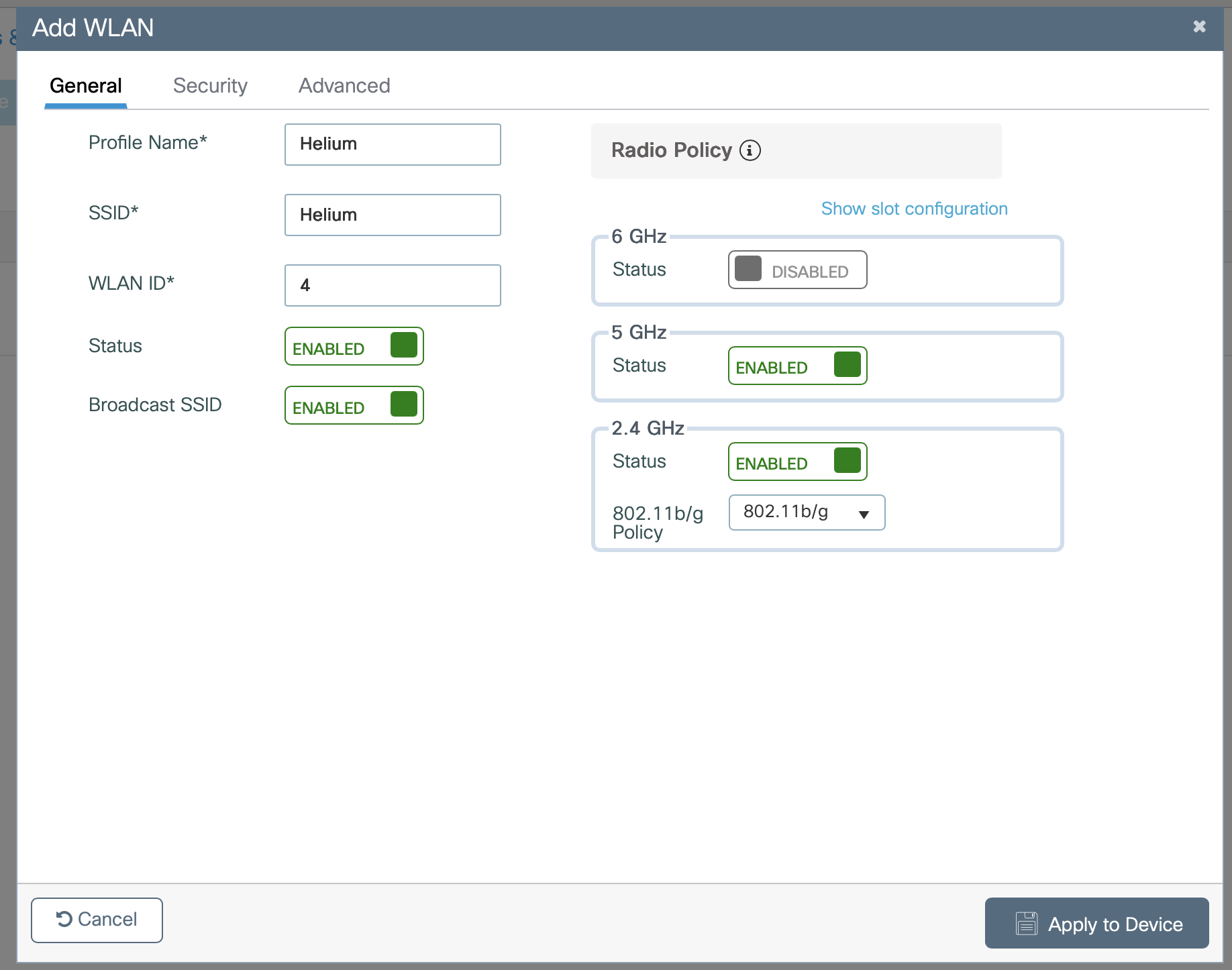

Build the Helium SSID

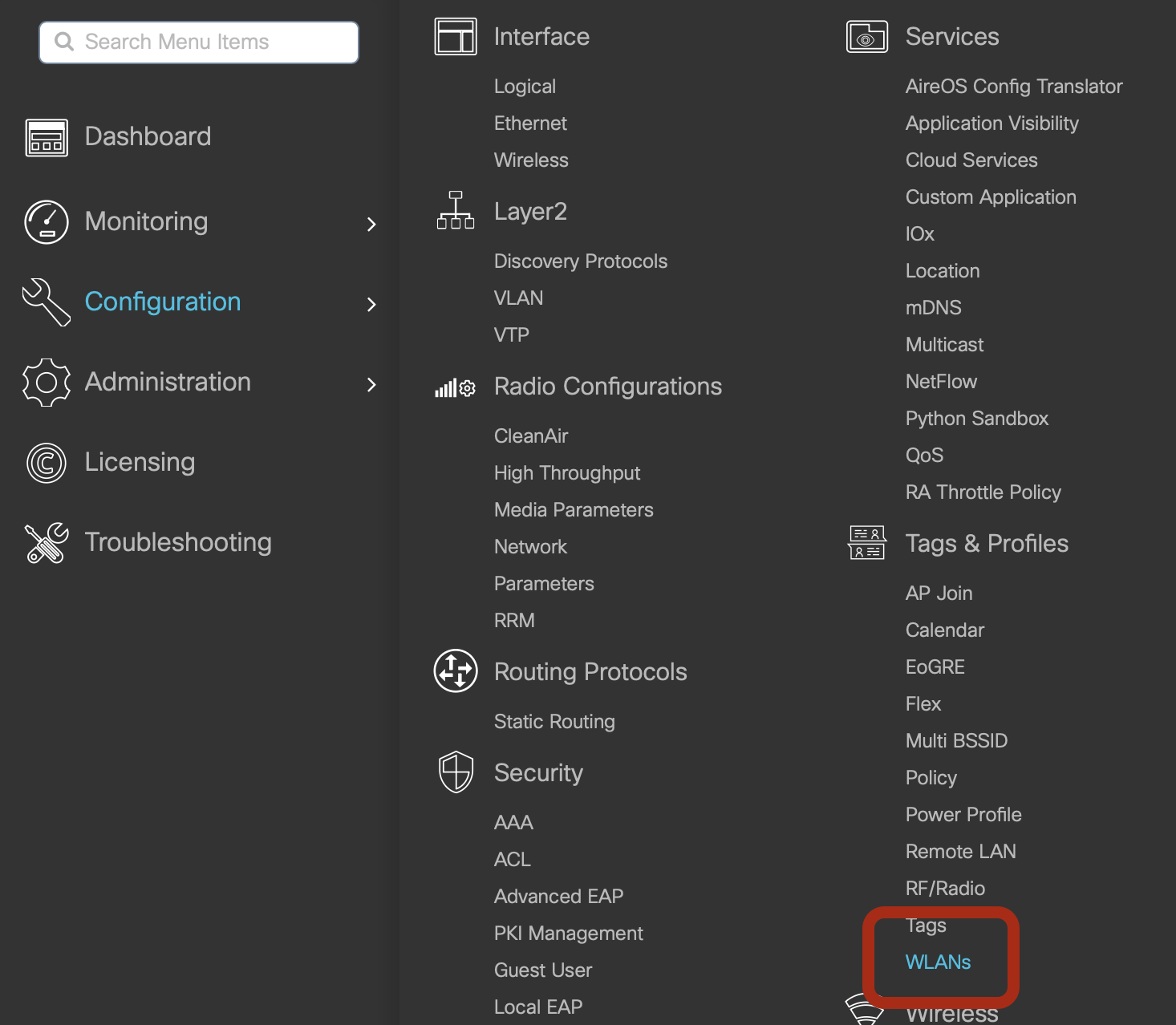

1. Click on Configuration -> Wireless -> WLANs



2. Click on +Add
3. Enter Name as Helium
4. Enter SSID as Helium
5. Enter WLAN ID as your next availabel integer e.g. 4
6. Select Enable to turn the ssid on
7. Select Enable/Discable for 6GHz as you hardware supports

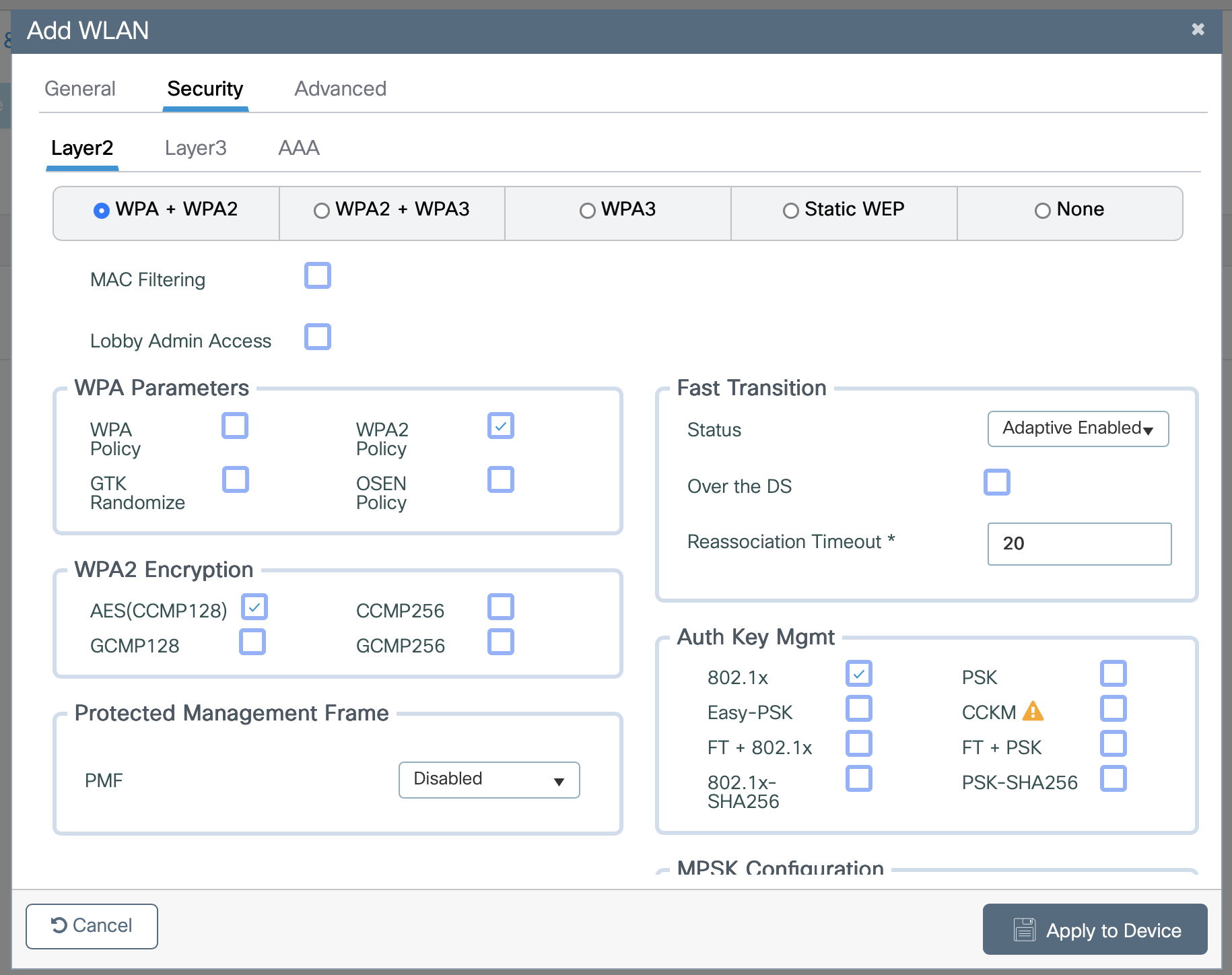

8. Select Security at the top of the window
9. Select Layer2 in the row below that
10. Ensure the following boxes are checked including WPA2 Policy, AES(CCMP128), 802.1x

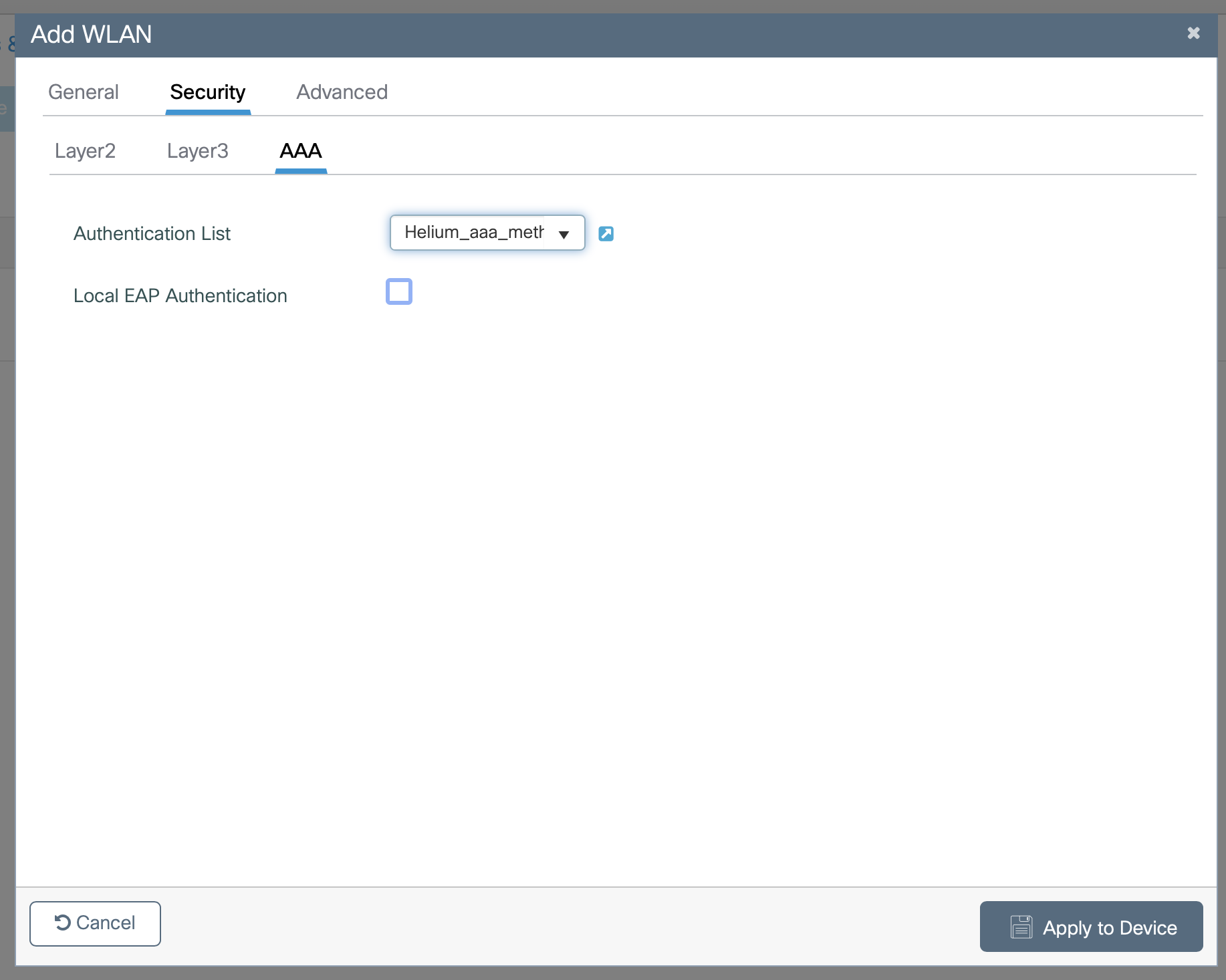

11. Select AAA at the top of the window
12. In the Authentication List drop down select Helium_aaa_meth_list



13. Click Apply to Device

Apply Policy and Hotspot Profile to the SSID

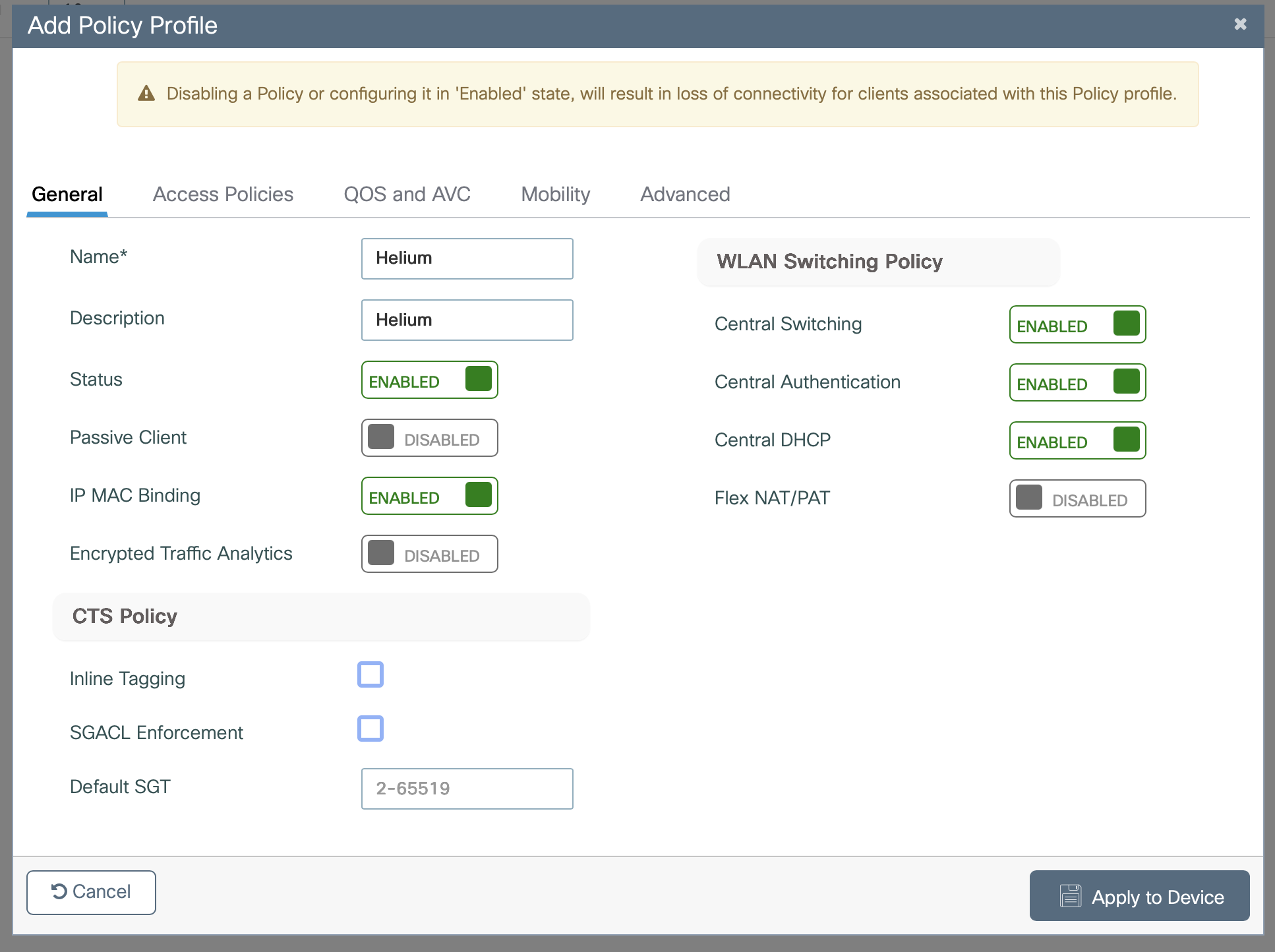

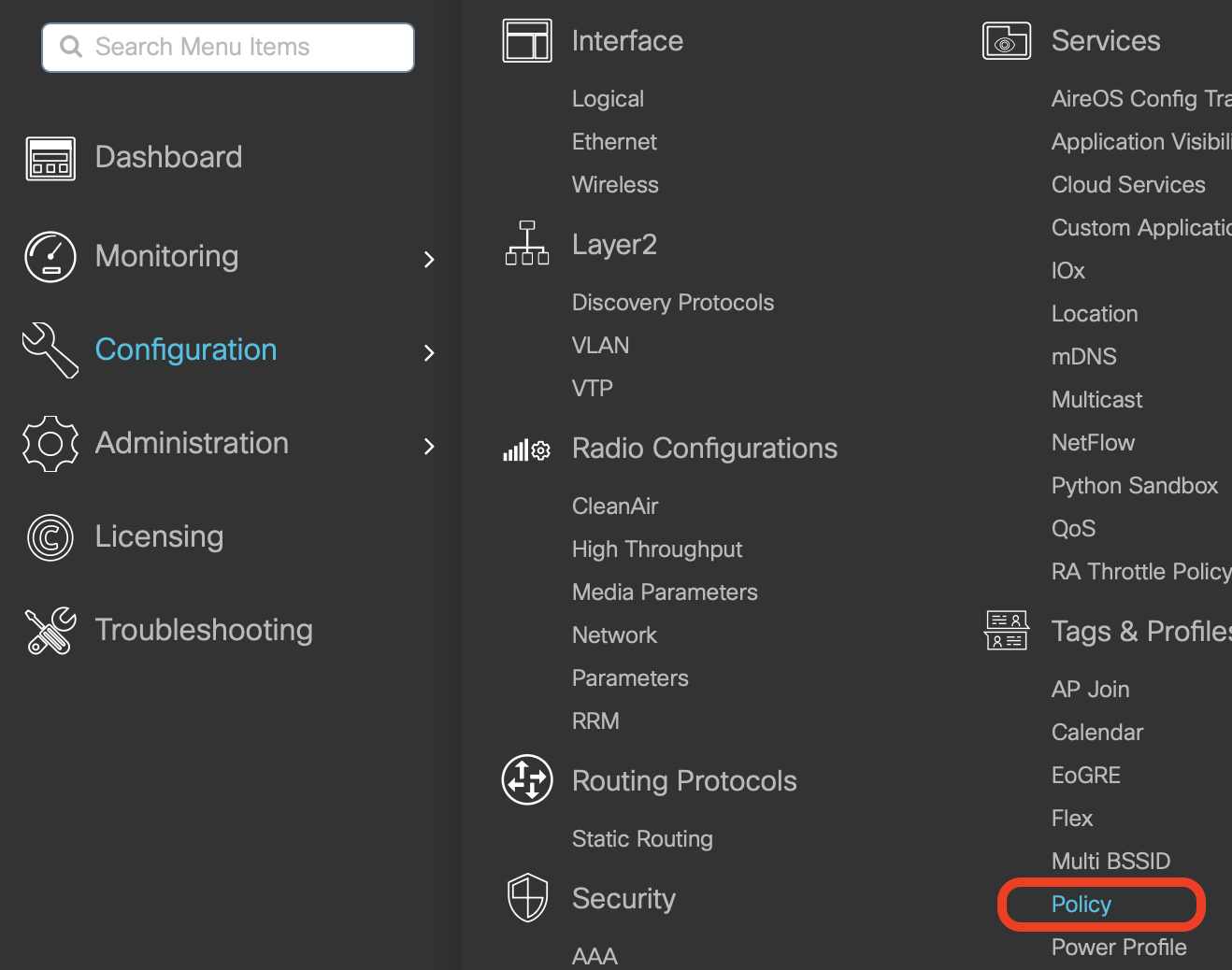

1. Click on Configuration -> Tags & Profiles -> Policy



2. Enter Name as Helium

3. Enter Description as Helium

4. Toggle Status to Enabled

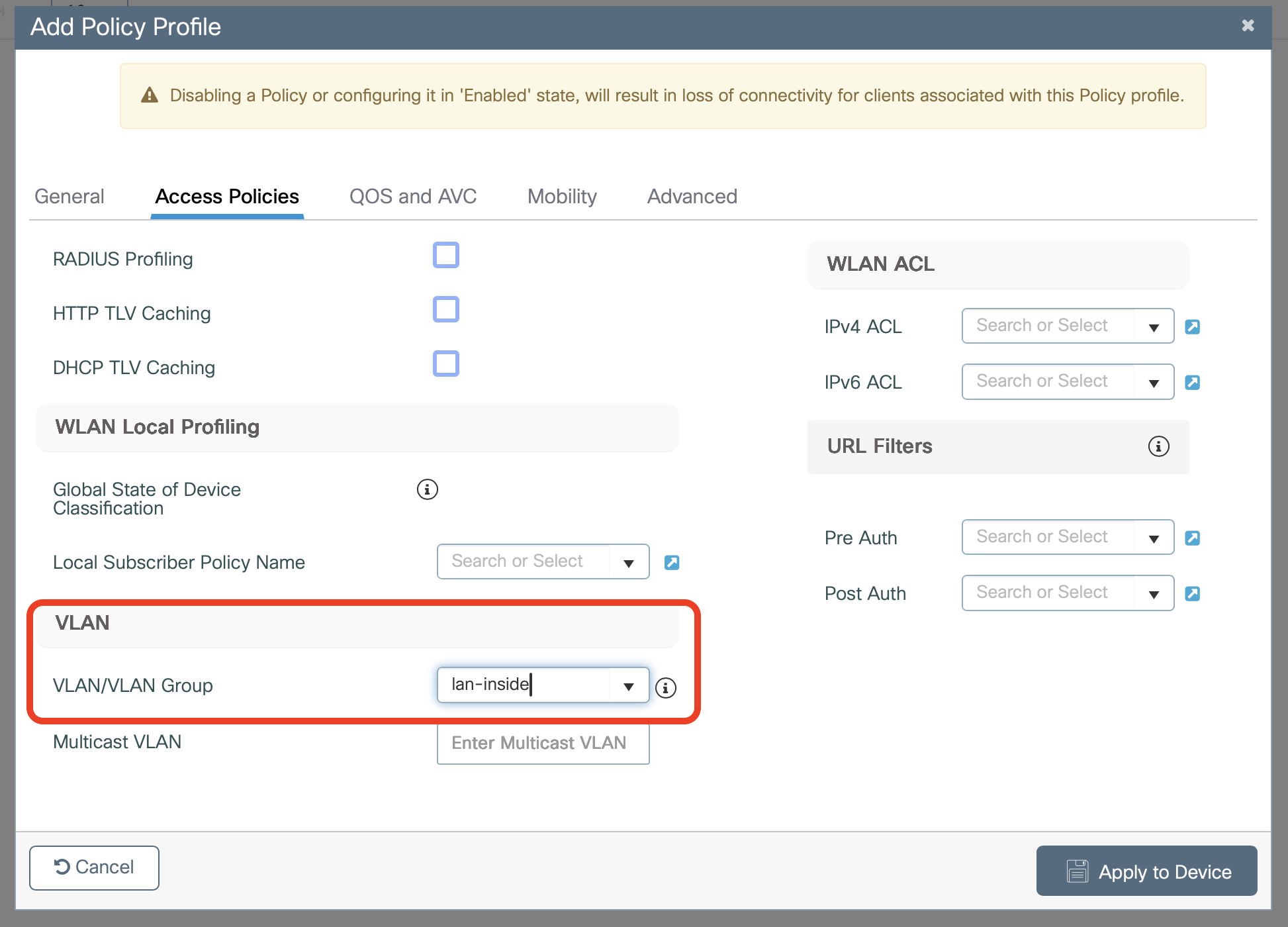

5. Across the top, select Access Policies

6. Select the VLAN/VLAN Group configured for Helium users (NOTE: This is typically a Guest type network with access to internet only)

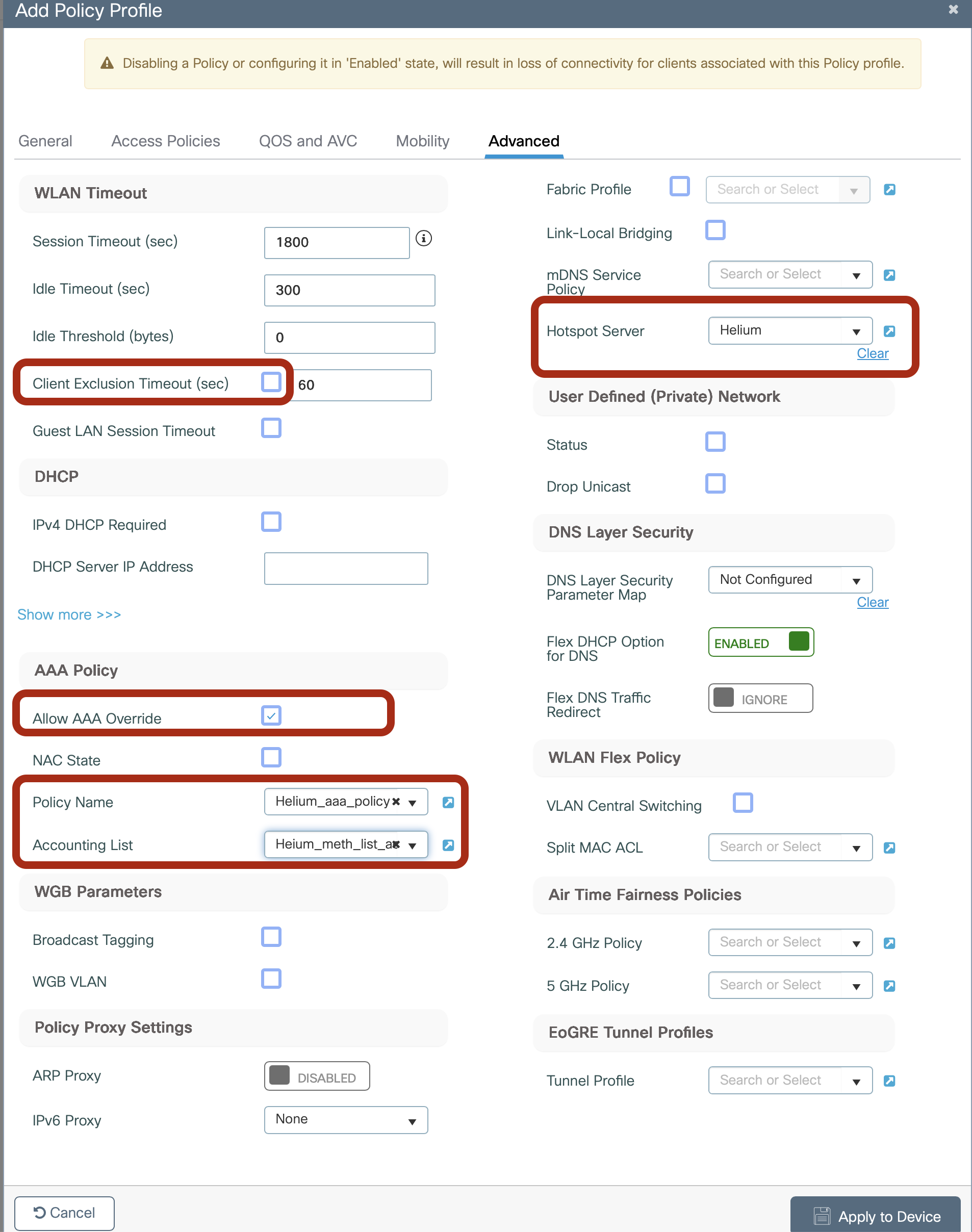

7. Across the top, select Advanced

8. Uncheck the box next to Client Exclusion Timeout

9. In the Hotspot Server drop down select Helium

10. Check the box for Allow AAA Override

11. In the Policy Name drop down select Helium_aaa_policy

12. In the Accounting List drop down select Helium_meth_list_acct



13. Click Apply to Device

Create Policy Tag

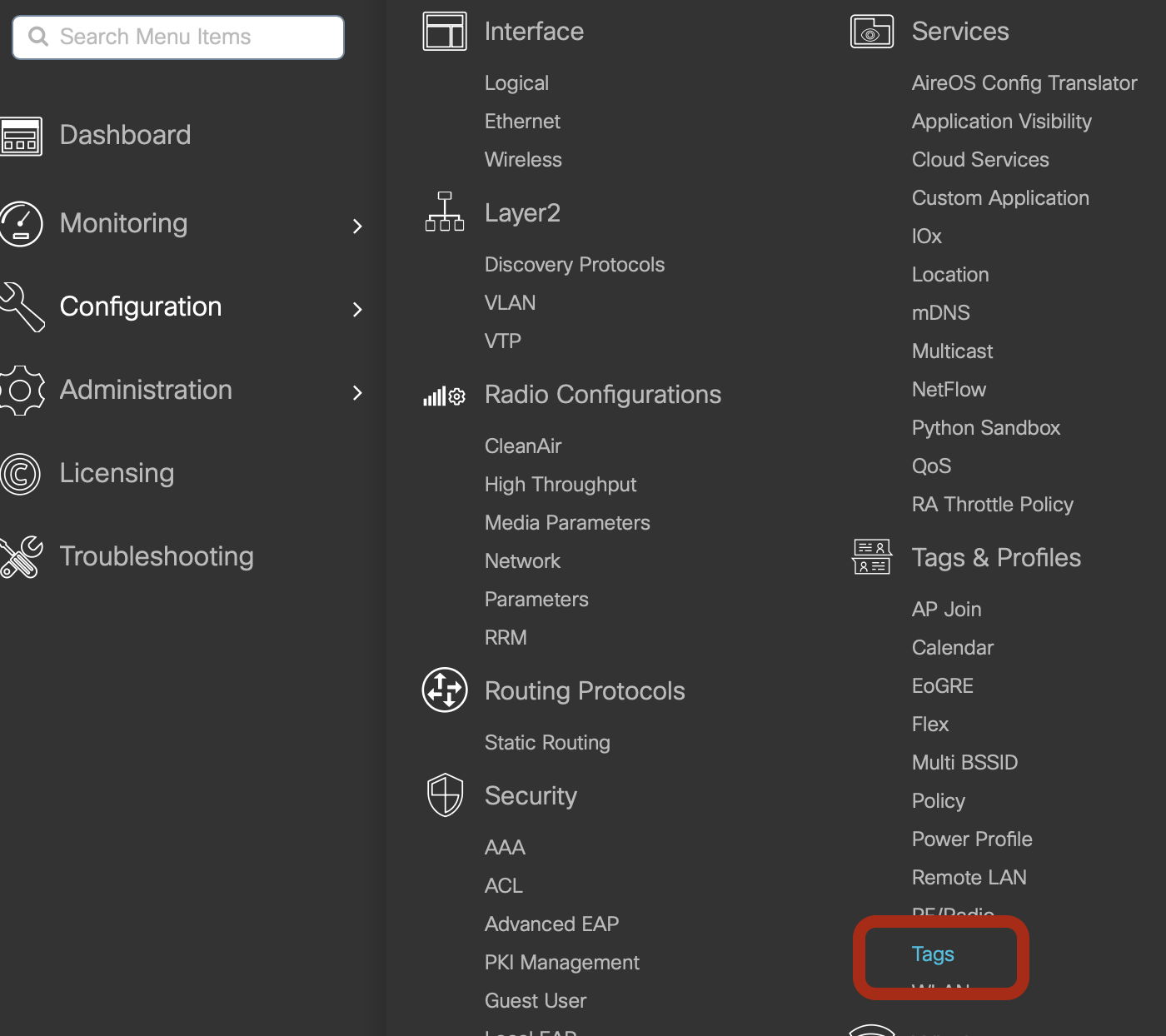

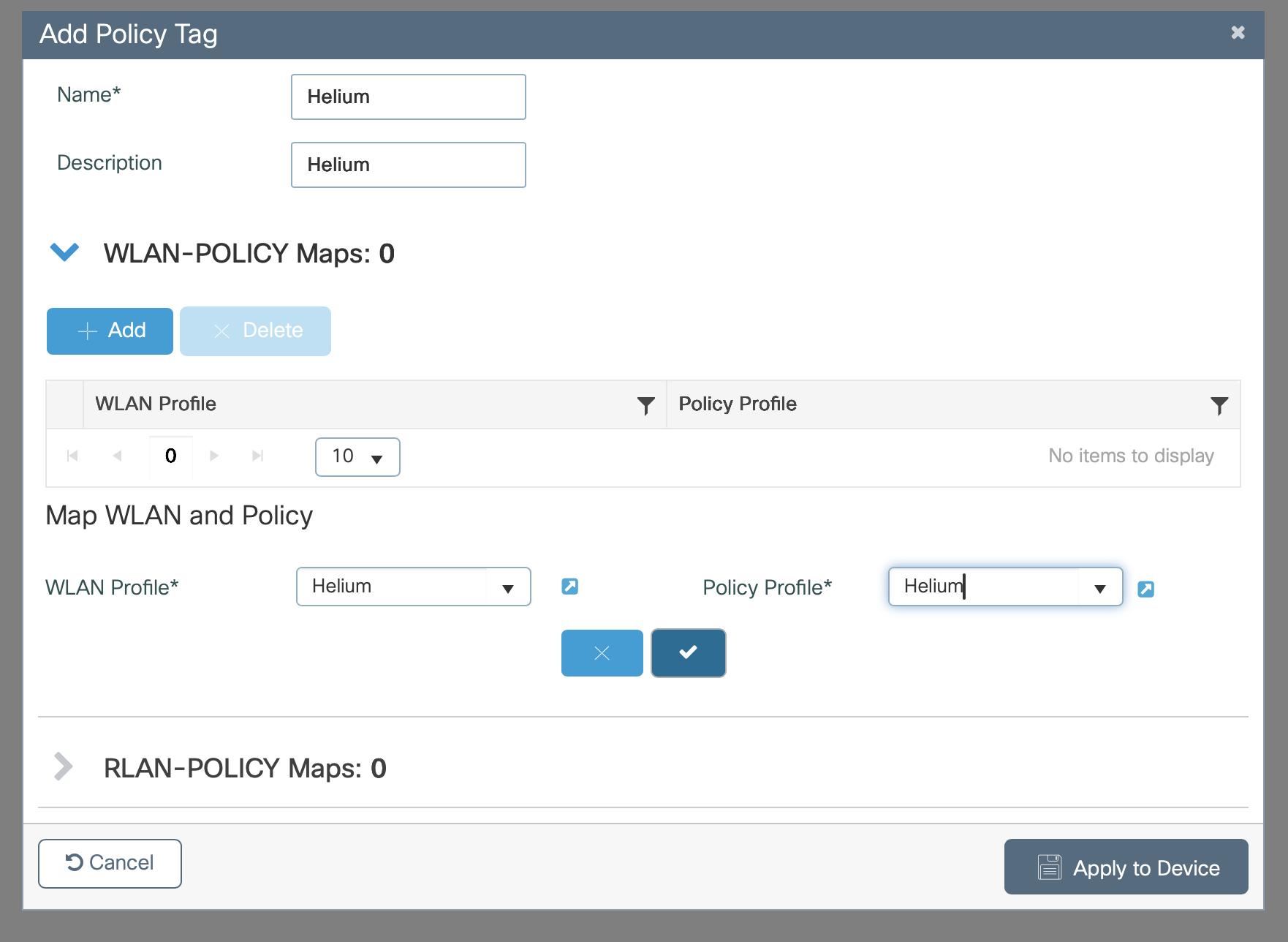

1. Click on Configuration -> Tags & Profiles -> Tags



2. Enter Name as Helium
3. Enter Description as Helium
4. Click +Add below WLAN-POLICY
5. In both WLAN Profile and Policy Profile drop down menus select Helium



6. Click the checkmark
7. Click Apply to Device

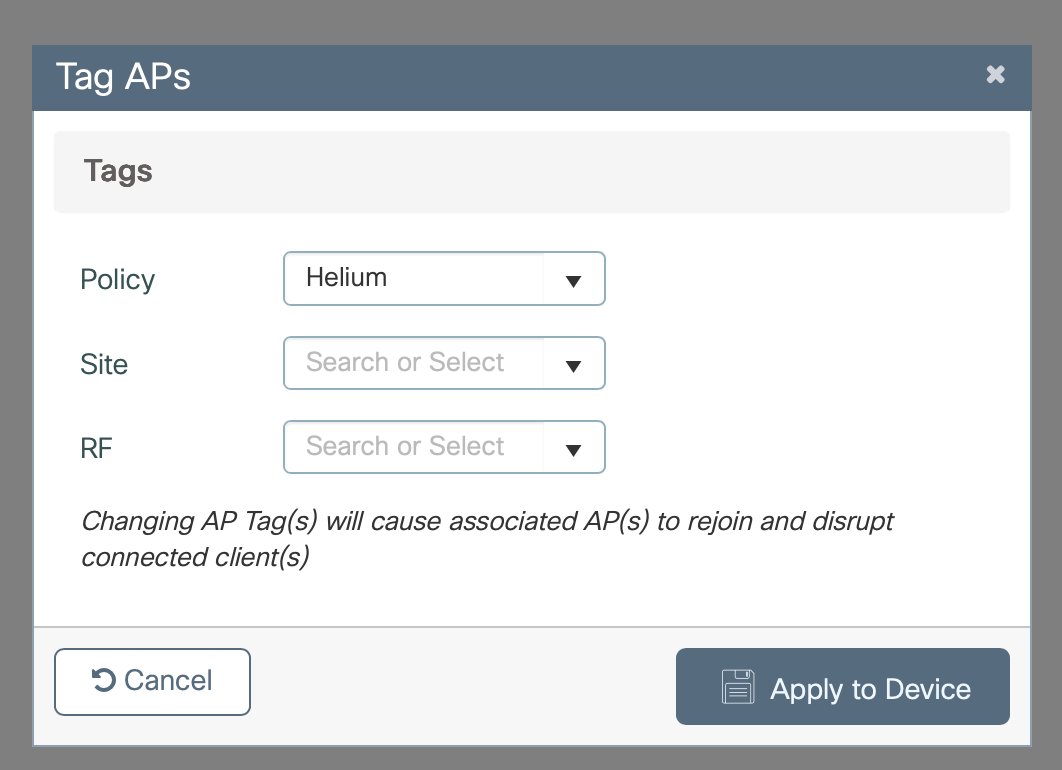

Apply Helium Tag to AP(s)

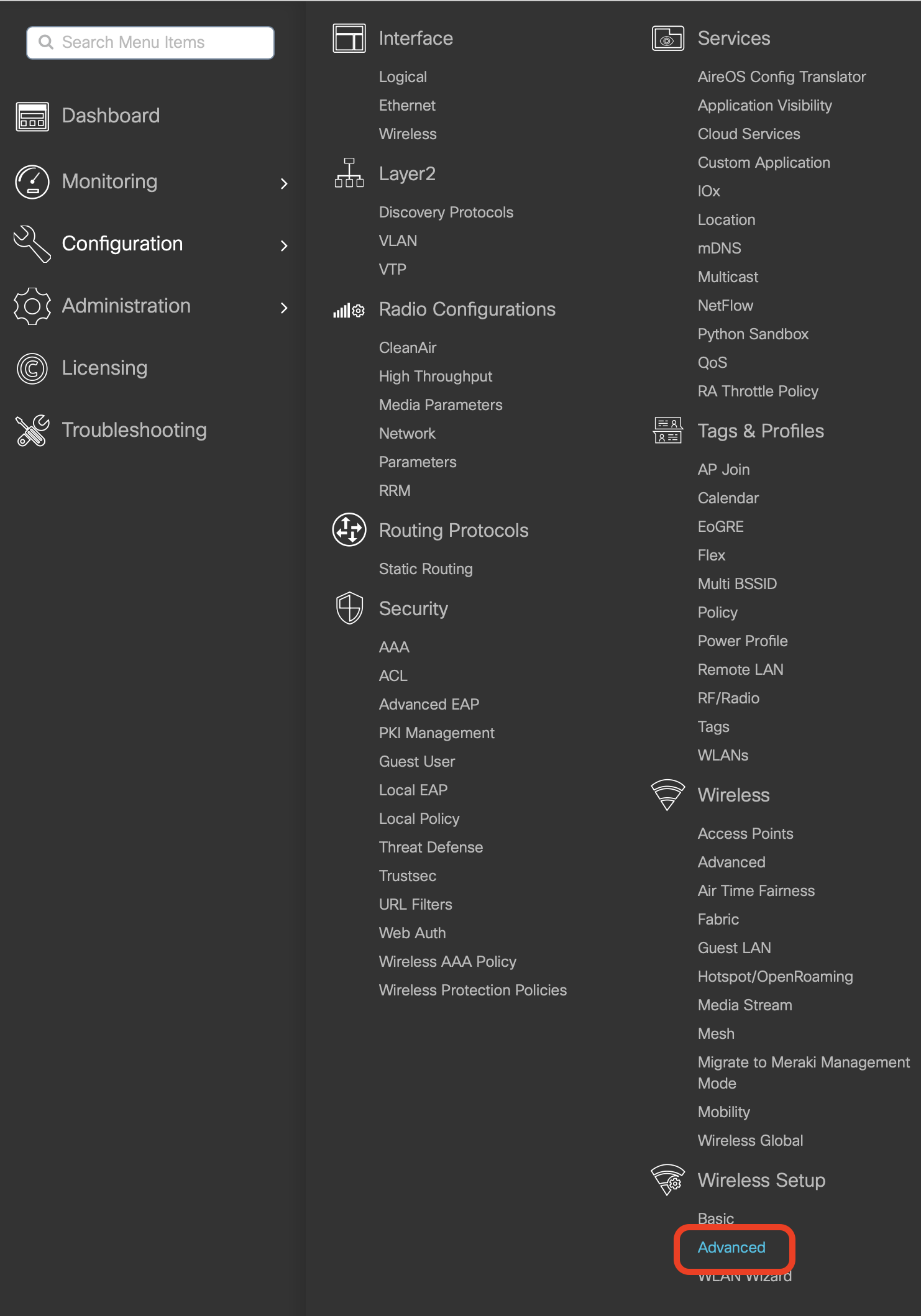

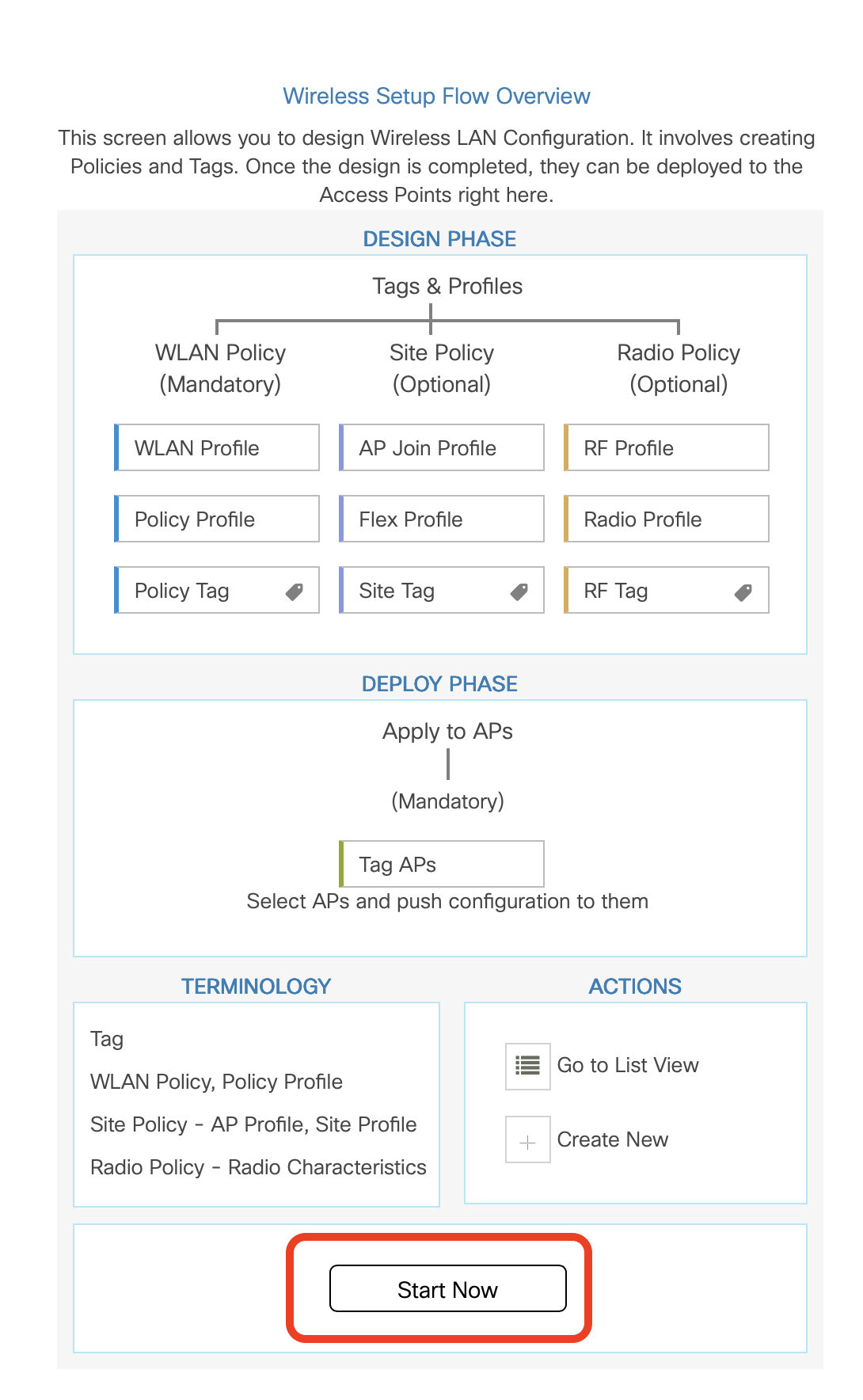

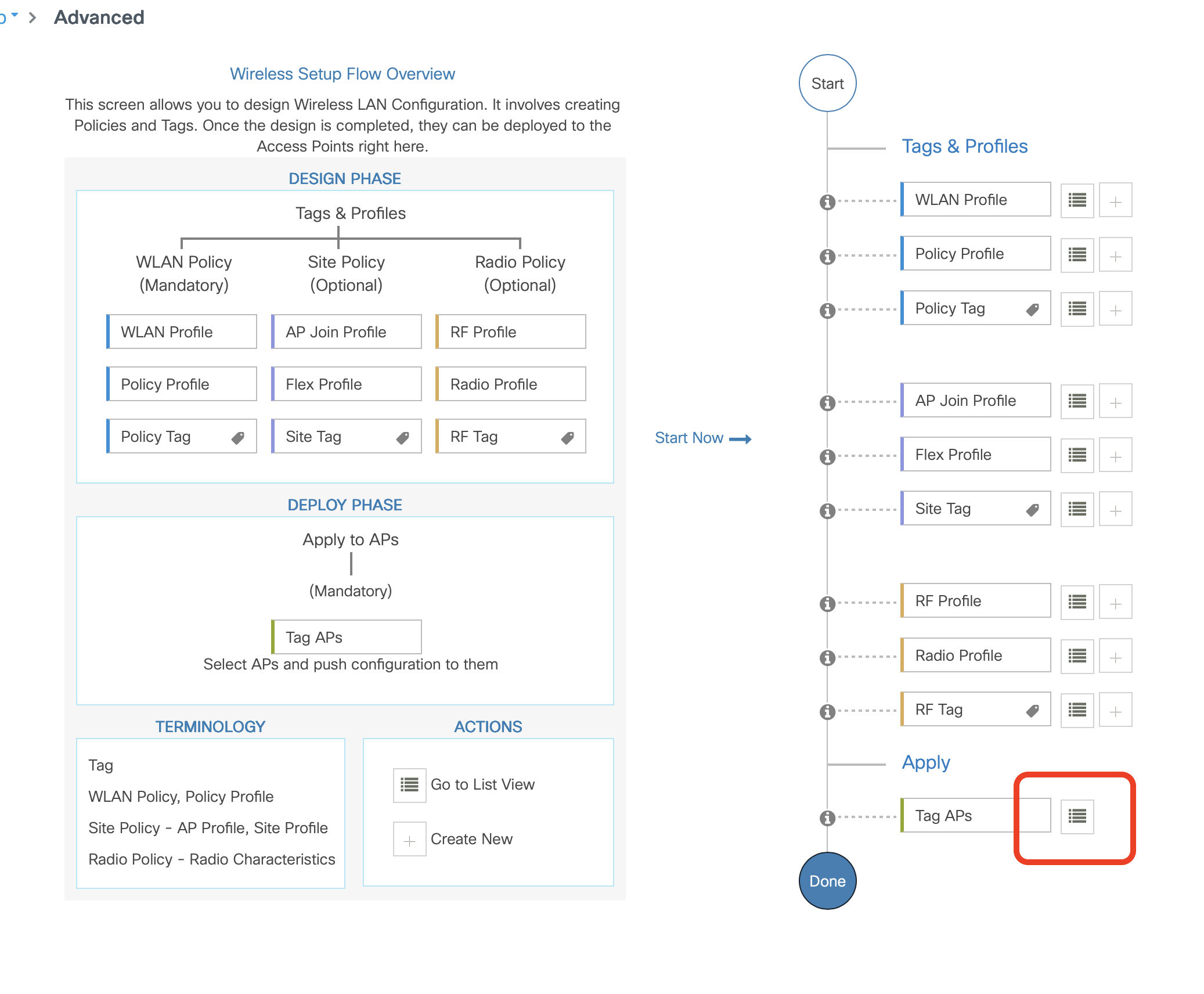

1. Click on Configuration -> Wireless Setup -> Advanced



2. Click on Start Now

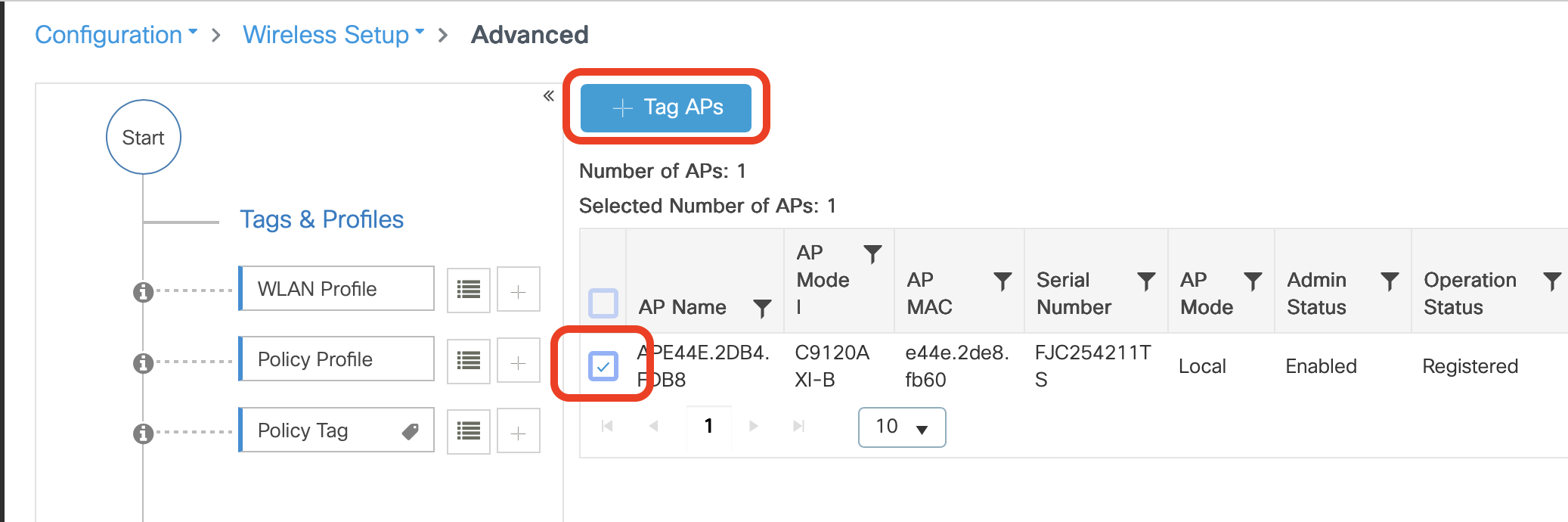

3. Click on the selector box next to Tag APs in the bottom right



4. Check the box next to the APs you want to broadcast the Helium SSID
5. Click +Add when you have you APs selected



6. In the Policy Drop down select Helium



7. Click Apply to Device
