Cisco Catalyst 5520 Conversion Guide

Prerequisites

• Cisco AireOS system must be running 8.5 or later.
• Guide assumes the network is using an on-prem 5520 Controller.
• Wi-Fi system has AP(s) linked to the 5520 WLC Controller.
• Cisco system has basic traffic routing working with existing SSID(s).
• An Intel-based host is required in the network to run the RadSecProxy container.

High Level Steps

1. Deploy RadSecProxy container and record IP address of host
2. Build WLAN Helium Passpoint SSID
   1. Build an SSID for Helium
   2. Configure Security and RADIUS Connections
   3. Configure 802.11u
   4. Build Hotspot 2.0 Profile
   5. Enable Hotspot 2.0

Deploy RadSecProxy Container

RADIUS messages used to authenticate users and for session accounting are transmitted unsecured and over UDP by default. By directing these messages internally in your secure network to a RadSecProxy, the UDP is then converted to a TLS protected TCP connection to the Helium Network core AAA servers.

Prerequisites

• An intel based machine with Docker installed.
• The intel based machine has a private IP in your network reachable from your 5520 WLC Controller
• ACLs or Firewalls allow 5520 WLC Controller and Docker Container to communicate UDP on port 1812 and 1813
• ACLs or Firewalls allow container/host to reach the internet on TCP ports 2083 and 3802.

Container Deployment

1. Un-zip and untar the Helium_RadSec_Docker.tar.gz file into the directory of your choice on the host machine. This will unpack the following items:
   1. Dockerfile - The docker instructions on how to build the container
   2. Radsecproxy.conf - The radsecproxy config file is pre-populated to connect to Helium Network AAA servers
   3. docker-compose.yml - File to start and stop the container as a daemon.

tar -xvzf Helium_RadSec_Docker.tar.gz

2. Into the same directory copy the 3 certificates obtained from Helium Network
   1. ca.pem - the root CA certificate
   2. cert.pem - the user certificate
   3. key.pem - the key file matched to the certificate
3. Start the container using:

sudo docker compose up -d

4. If/when needed, stop the container using:

sudo docker compose down

Build an SSID for Helium

This guide outlines how to configure a Cisco 5520 Wireless LAN Controller (WLC) running AireOS 8.5 for integration with the Helium Network using a local Docker-based RadSecProxy. This enables Passpoint (Hotspot 2.0) authentication through Helium’s secure RADIUS infrastructure.

To start login to your Cisco 5520 Dashboard in your browser, this will be our starting point for all major steps below

1. Log into your WLC Dashboard → click Advanced → WLANs
2. Click Create New → Go.
3. Enter Profile Name: Helium
4. Enter SSID: Helium.
5. Set ID: any available value.
6. Click 'Apply' → then select the WLAN ID to edit

note

In the following steps we will only mention mandatory fields to set. Most windows will have many other parameters with default values set. Leave any unmentioned parameter at it's default value.

Configure Security and RADIUS Connections

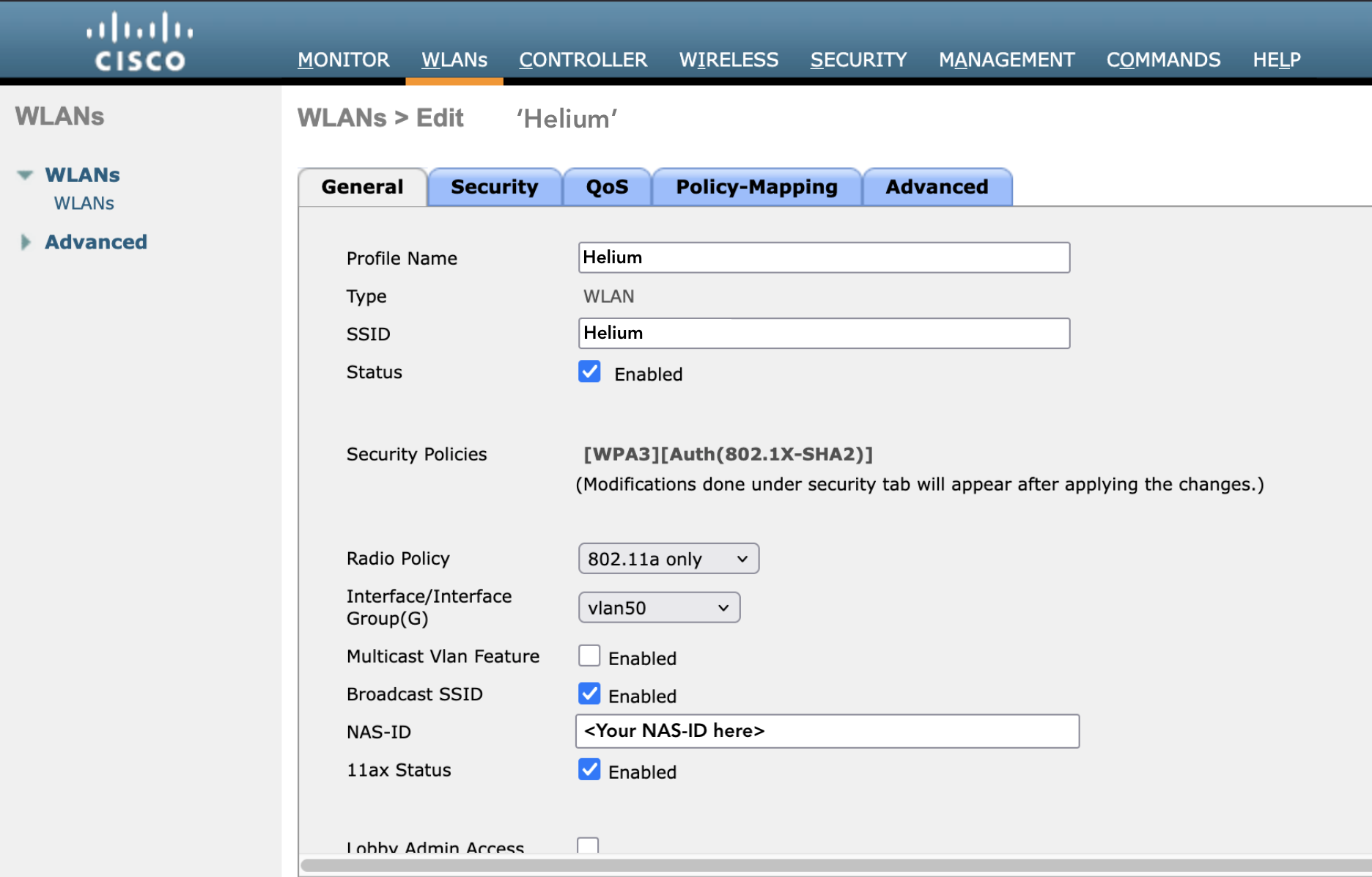

1. Under the General tab, check the Status box to Enable
2. Check the box to Broadcast SSID
3. Configure the NAS-ID to the value shared to you by Helium

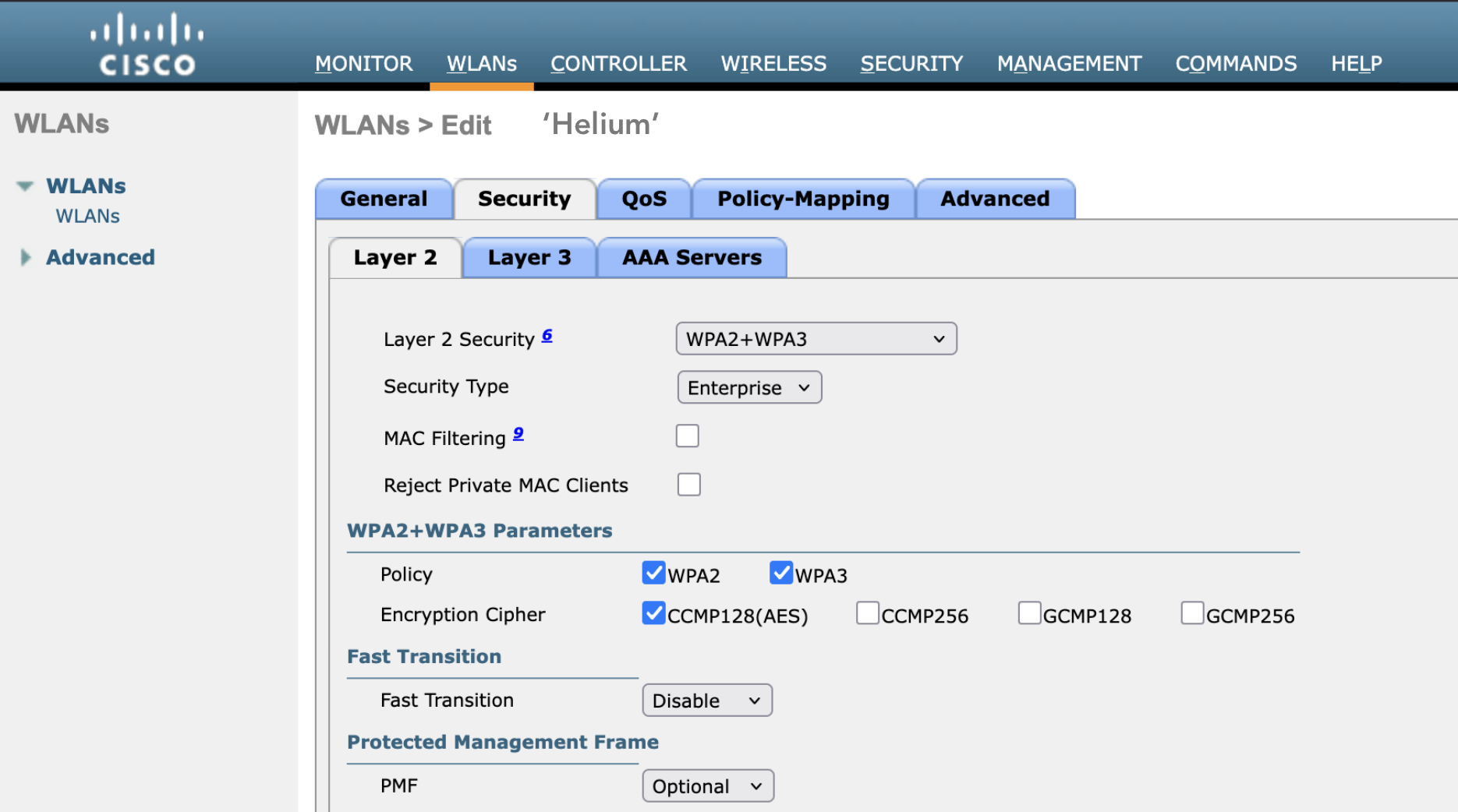

2. Under the Security -> Layer2 tabs configure the following parameters:

3. In Layer 2 Security dropdown choose WPA2 + WPA3

4. Check the boxes for WPA2 and WPA3 Policy

5. For Encryption Cipher check the box for CCM128(AES)



6. Under the Security -> AAA tabs configure the following parameters:

7. Configure Authentication Server IP to be the IP of your local RadSecProxy

8. Configure Authentication Port to be 1812

9. Configure shared secret to mysecret

10. Configure Accounting Server IP to be the IP of your local RadSecProxy

11. Configure Accounting Port to be 1813

12. Configure shared secret to mysecret

13. Configure Interim Interval to 300 seconds

Configure 802.11u

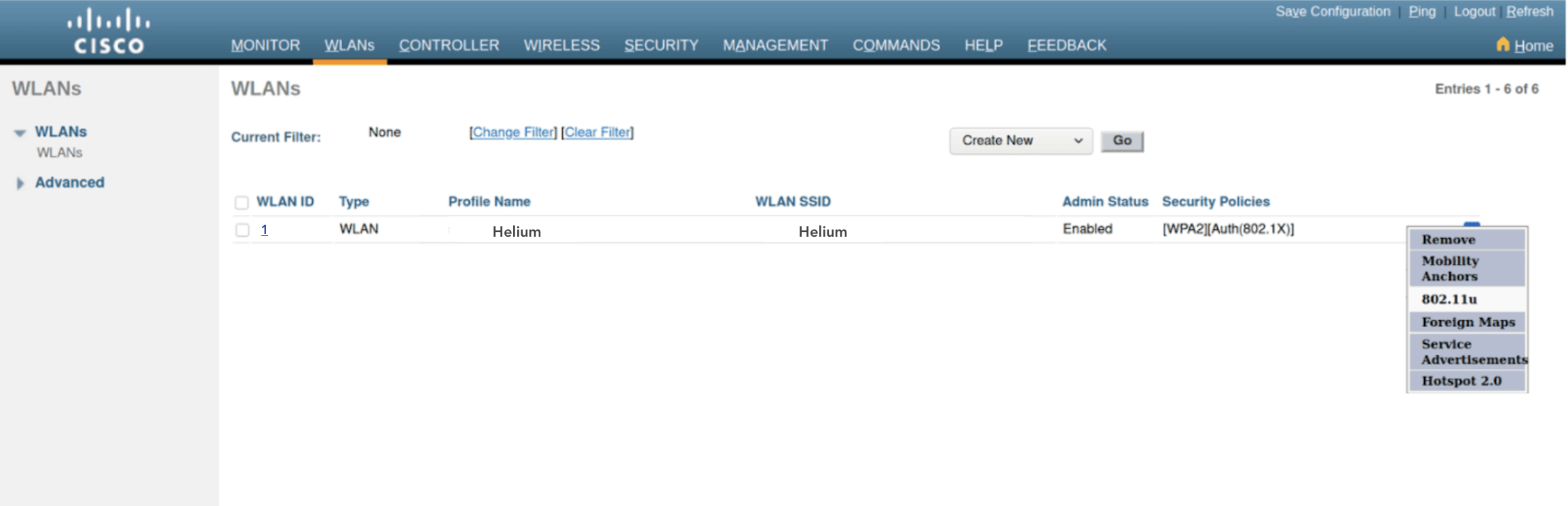

1. From the main WLANs view, select the blue down arrow to the right of the WLAN description and select 802.11u from the dropdown menu

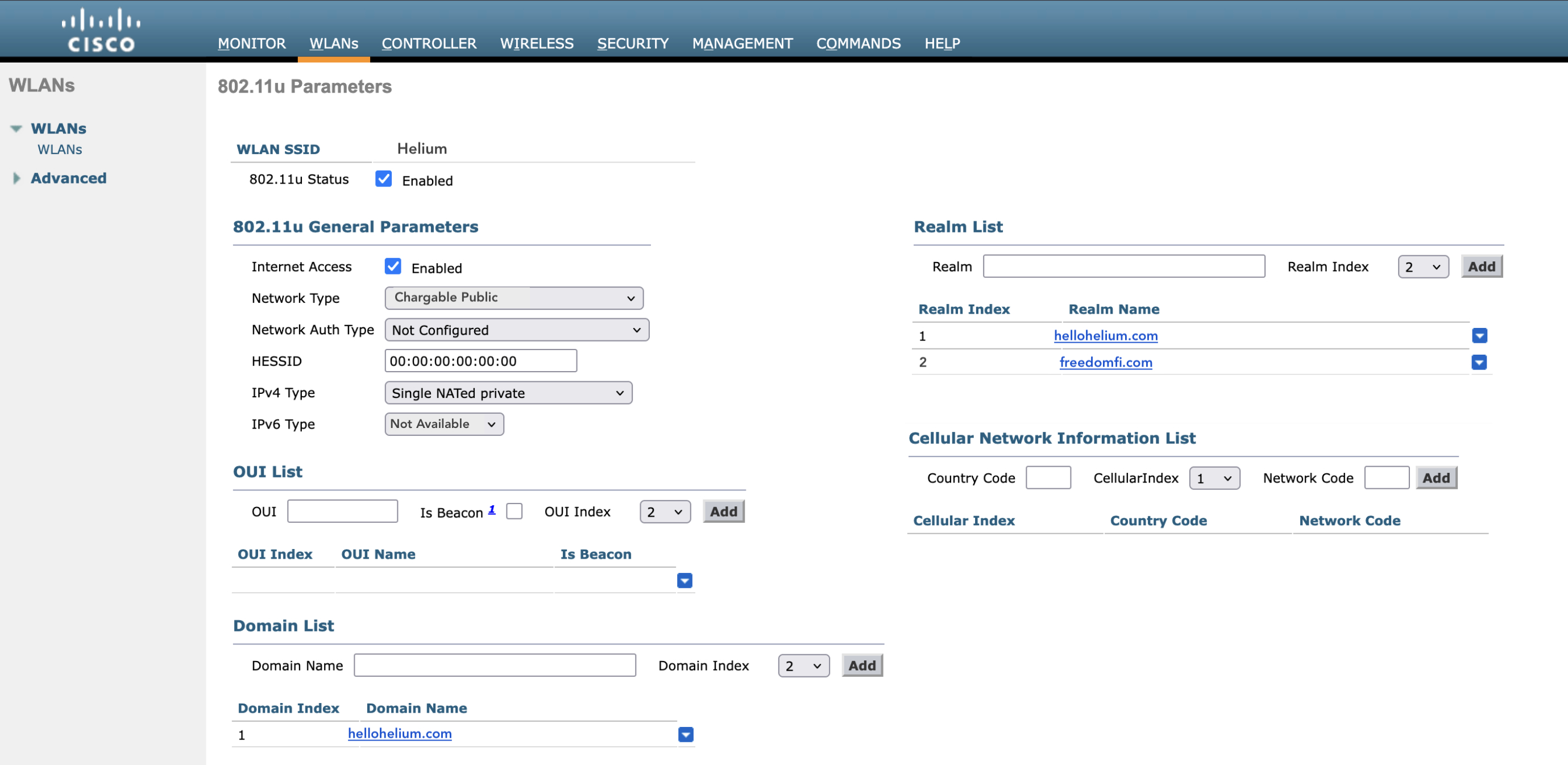

2. In the configuration page that opens configure the following parameters:

3. Check the box for 802.11u Status to Enable to view more configurable parameters

4. Check the box for Internet Access to Enabled

5. In the dropdown for Network Type choose Chargable Public

6. In the dropdown for IPv4 Type choose Single NATed Private or most applicable option for your network

7. In the dropdown for IPv4 Type choose Not Available or most applicable option for your network

8. In the Realm List enter hellohelium.com and click Add

9. Repeat adding to Realm List and enter freedomfi.com and click Add



note

You can see in the bottom right of the screenshot where you will add the carrier codes that will be sent from the Helium team.

10. Click on the hellohelium.com realm you just created
11. Set EAP Method to EAP-TLS, then click on Ad. The EAP method appears in the EAP Index. If it asks for sub-method choose Certificate
12. Repeat the steps for the freedomfi.com realm
13. In the Domain List enter hellohelium.com and click Add
14. Save configuration

Build Hotspot 2.0 Profile

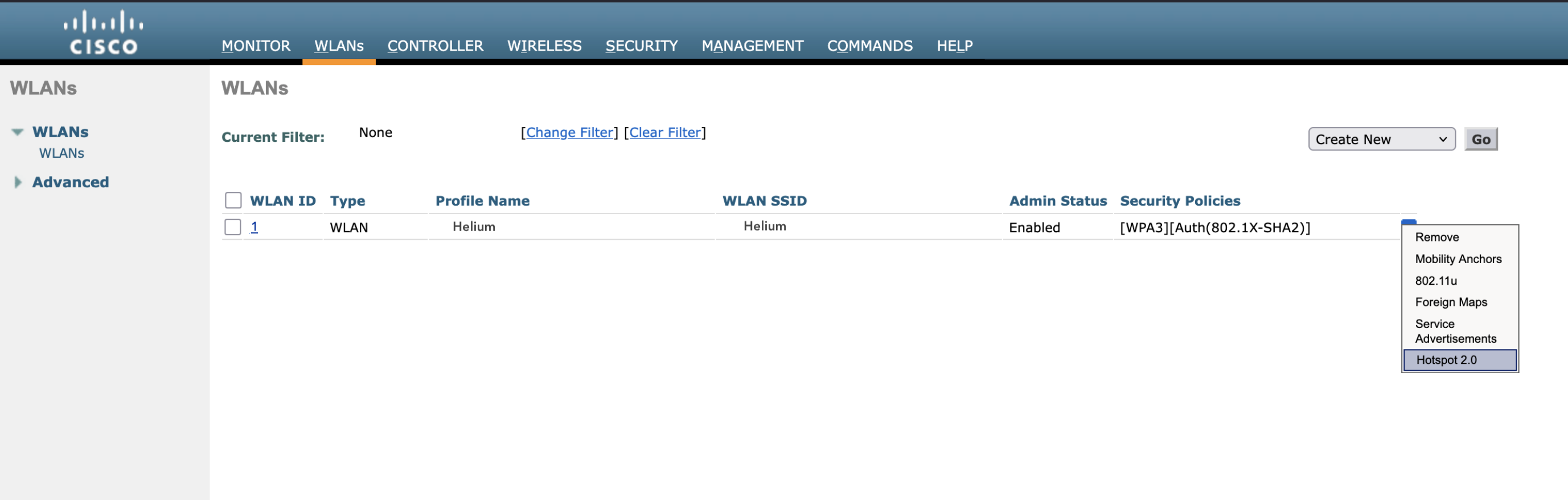

1. From the main WLANs view, select the blue down arrow to the right of the WLAN description and select Hotspot 2.0 from the dropdown menu



2. Check the box to Enable Hotspot 2.0.

3. Set WAN Link Status to Link Up

4. Click Apply -> Save Configuration

Verification

1. After saving, attempt to connect using a Helium Mobile SIM or eSIM device.
2. Monitor the proxy logs with:

   docker logs -f radsecproxy

3. Successful authentication will display lines similar to:

   Received Access-Request from 192.168.x.x
   Access-Accept for user anonymous@<random>.hellohelium.com

4. You can also confirm in the WLC Dashboard → Monitor → Clients that the device is connected via 802.1X authentication.
