Add Device to ChirpStack via Console

Adding a device to your ChirpStack console for the first time is currently a 3 step process. Each device needs a device profile and each device needs to belong to an application. Integrations are currently handled per-application level for device(s).

  1. Create a Device Profile or Select from Templates
  2. Create an Application
  3. Create a Device in the Application

After adding a device to ChirpStack, take note of the Device EUI and Join EUI values in order to be able to Configure Device in Helium Config Service

Create Device Profile​

Device Profiles -> Add Device Profile​

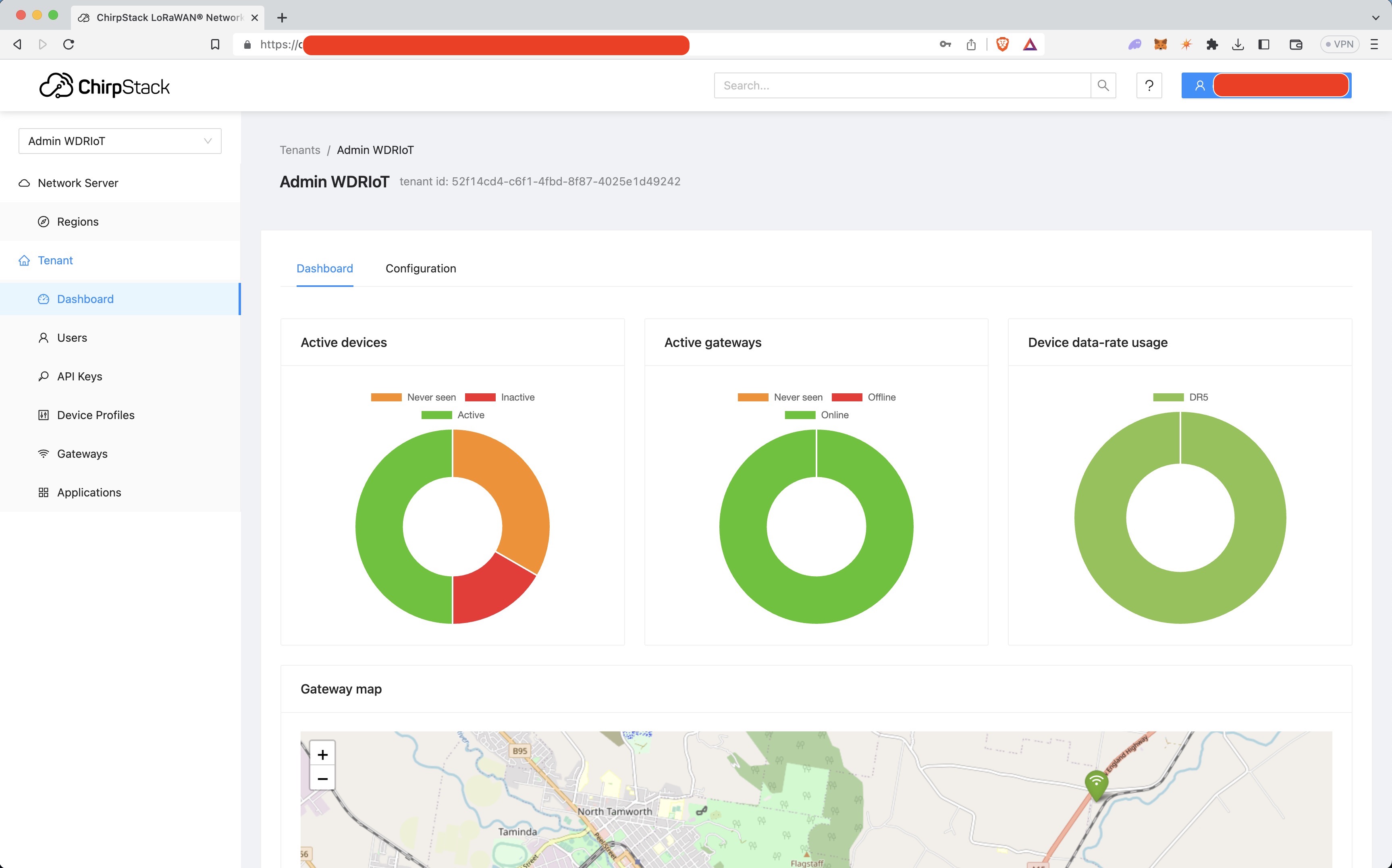

From the dashboard click on Device Profiles.

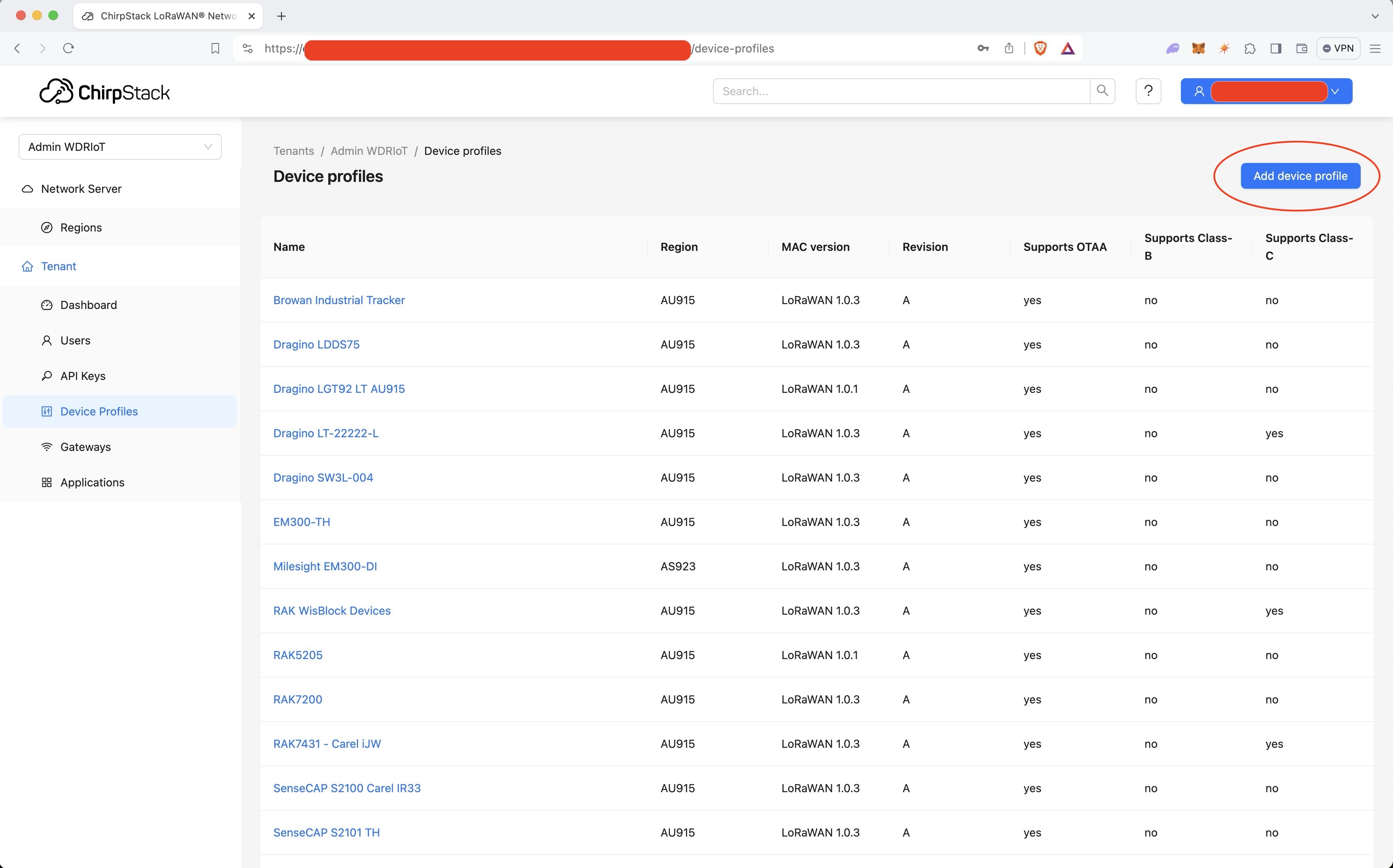

From Device Profiles click on Add device profile.

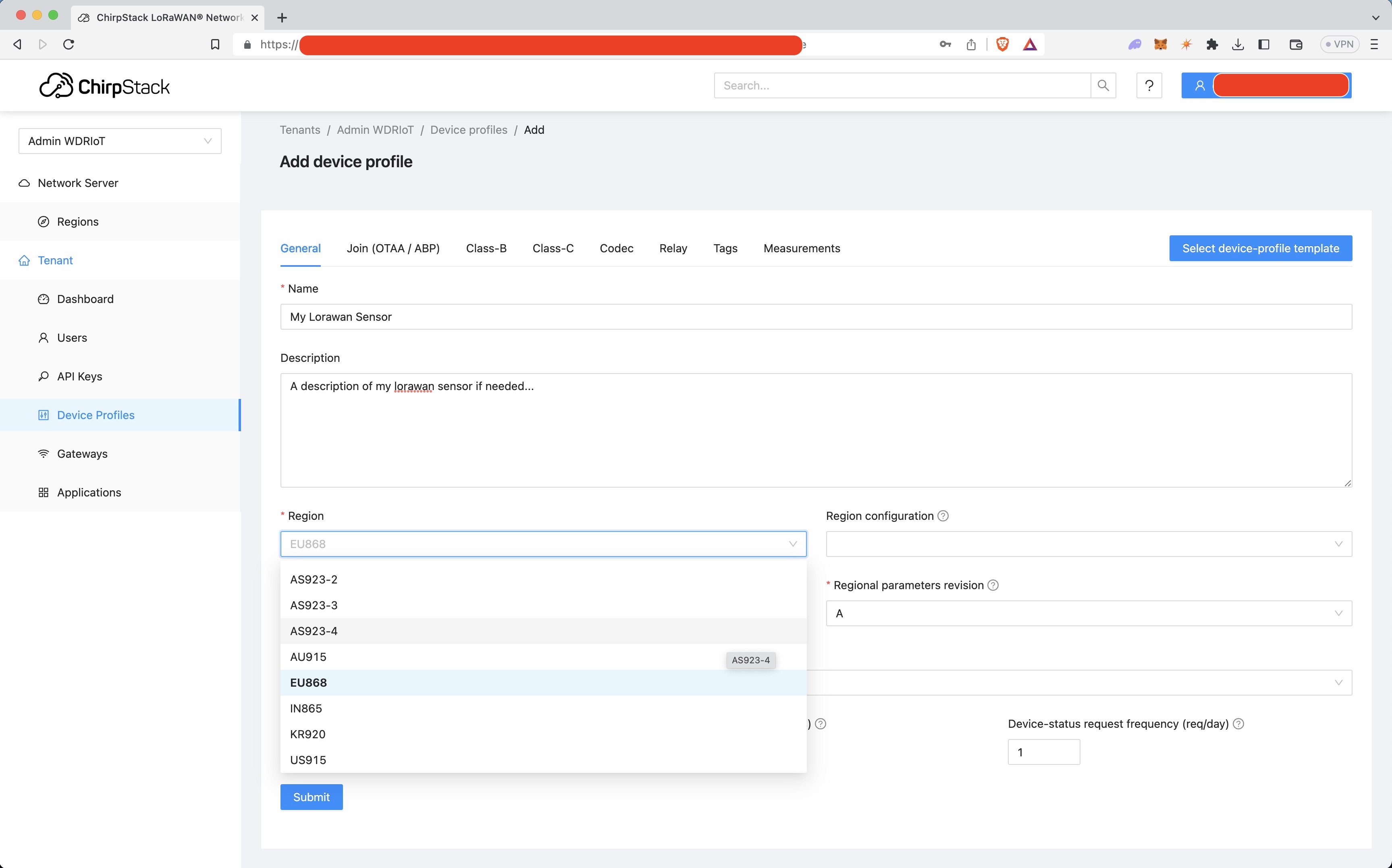

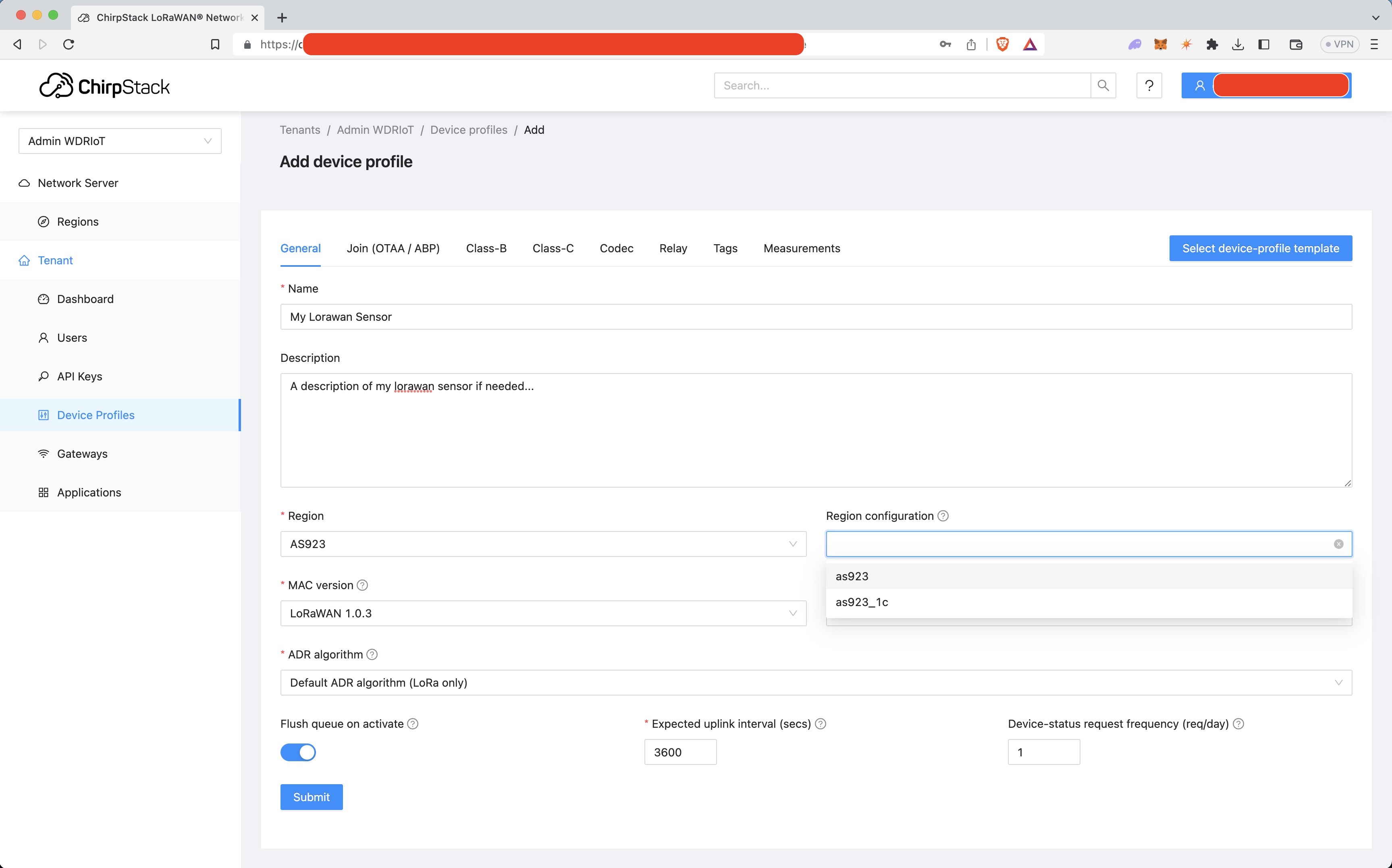

From here you can either create a new device profile, or select one from the device-profile templates if they're available.



Click Submit to add your new device profile.



Create Application​

Applications -> Add Application​

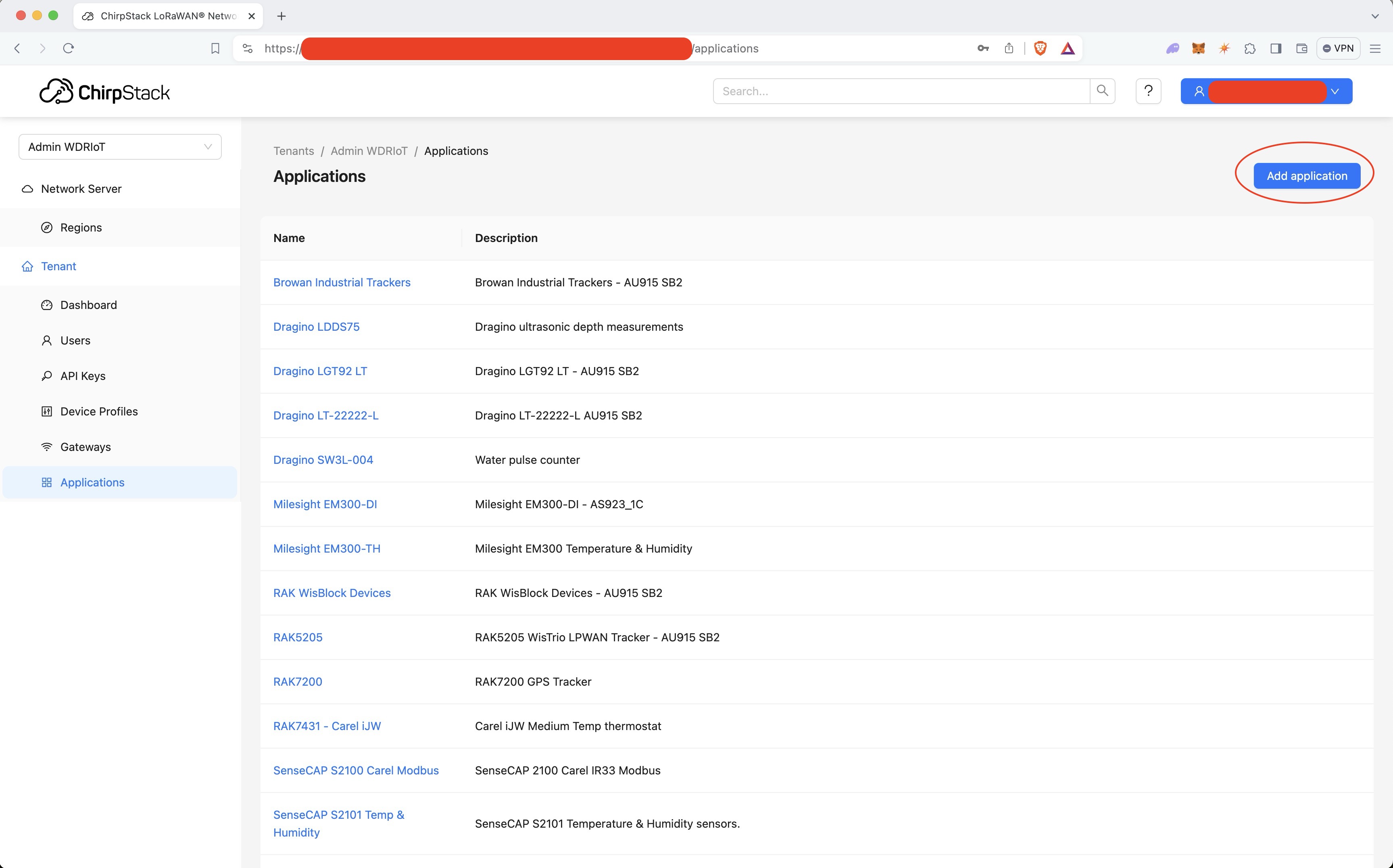

From the Applications sidebar menu, click Add Application.

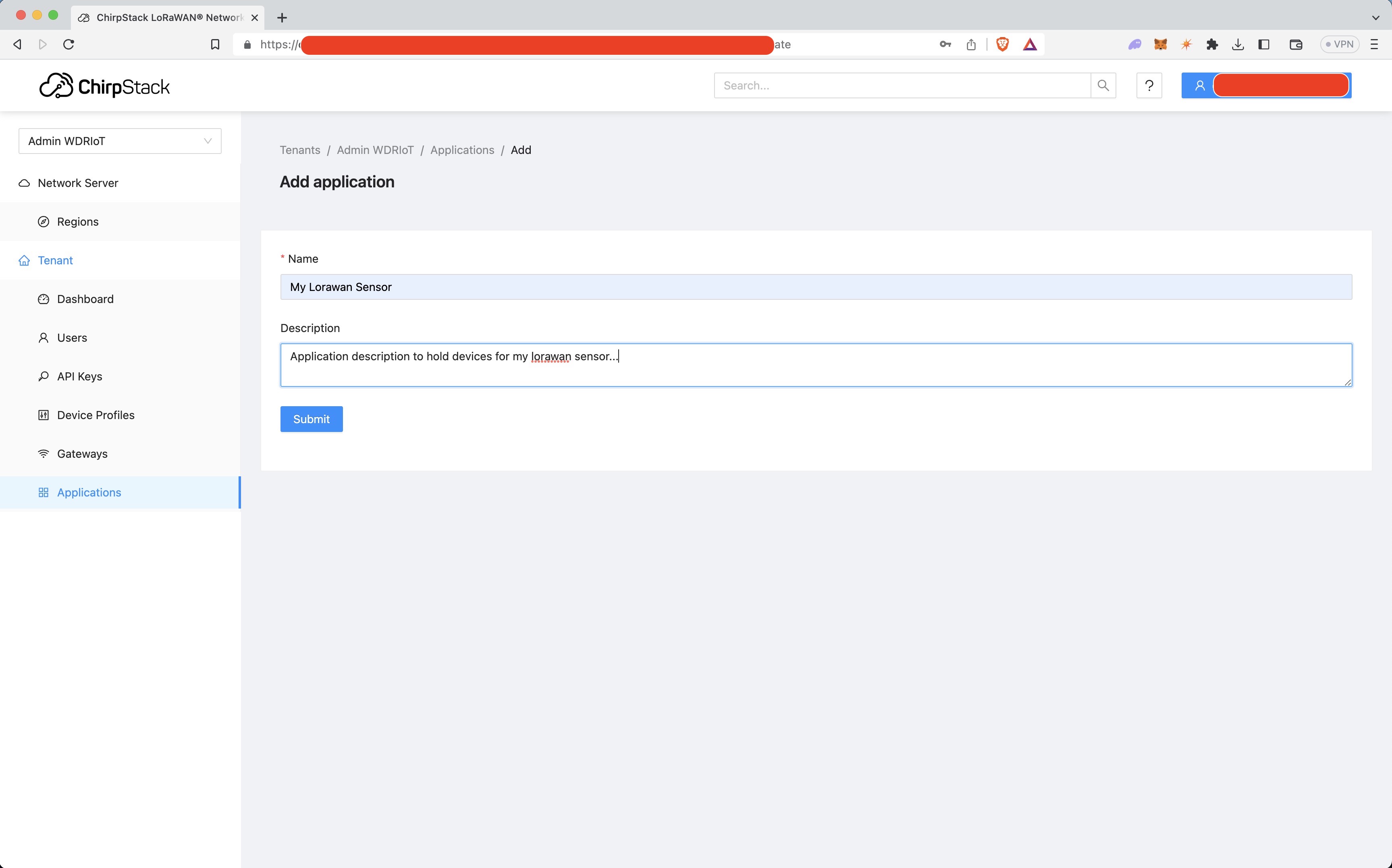

Create the application with a name and description.



Create Device in Application​

Application -> Application-Name -> Add Device​

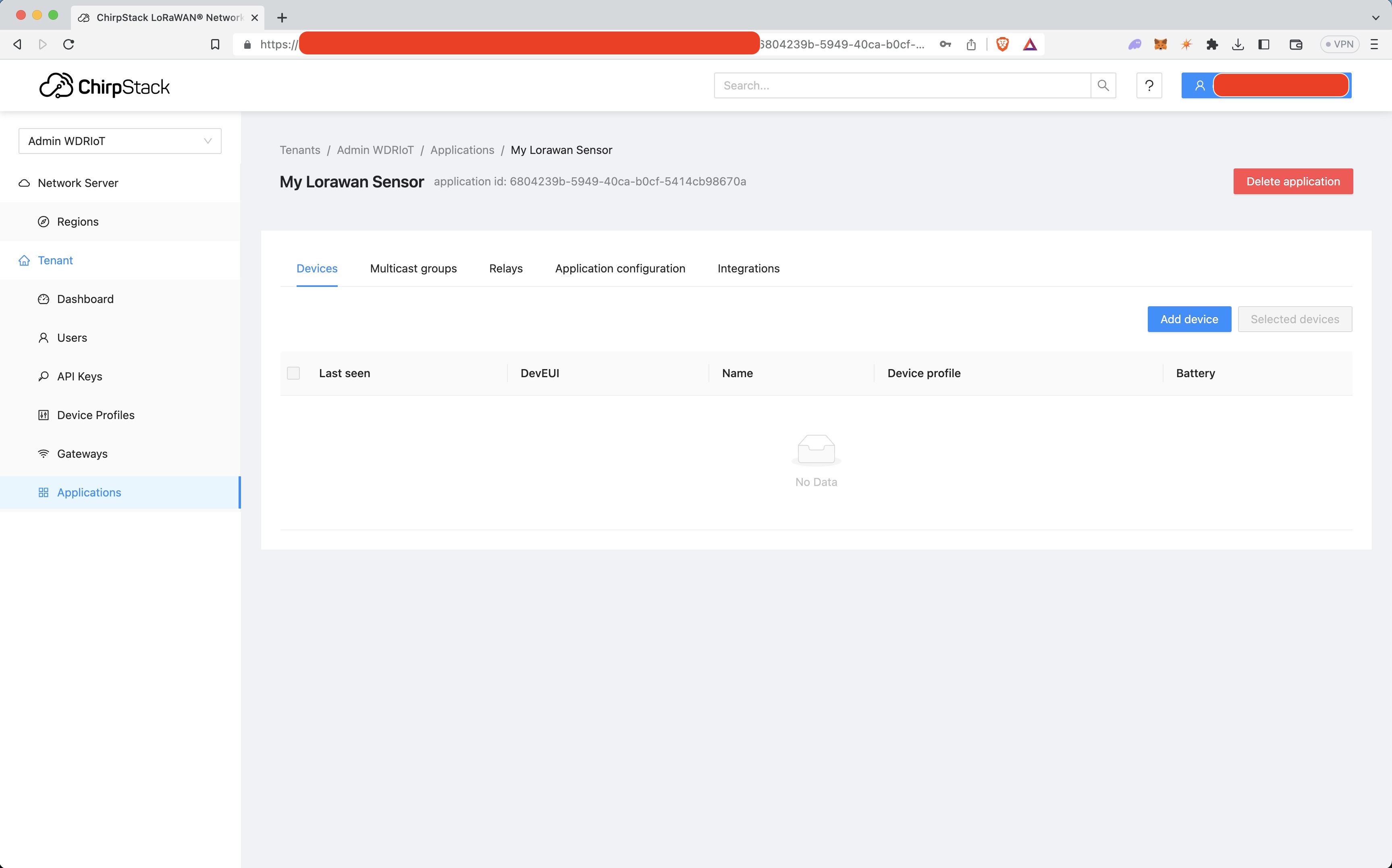

Select your Application and click Add Device.

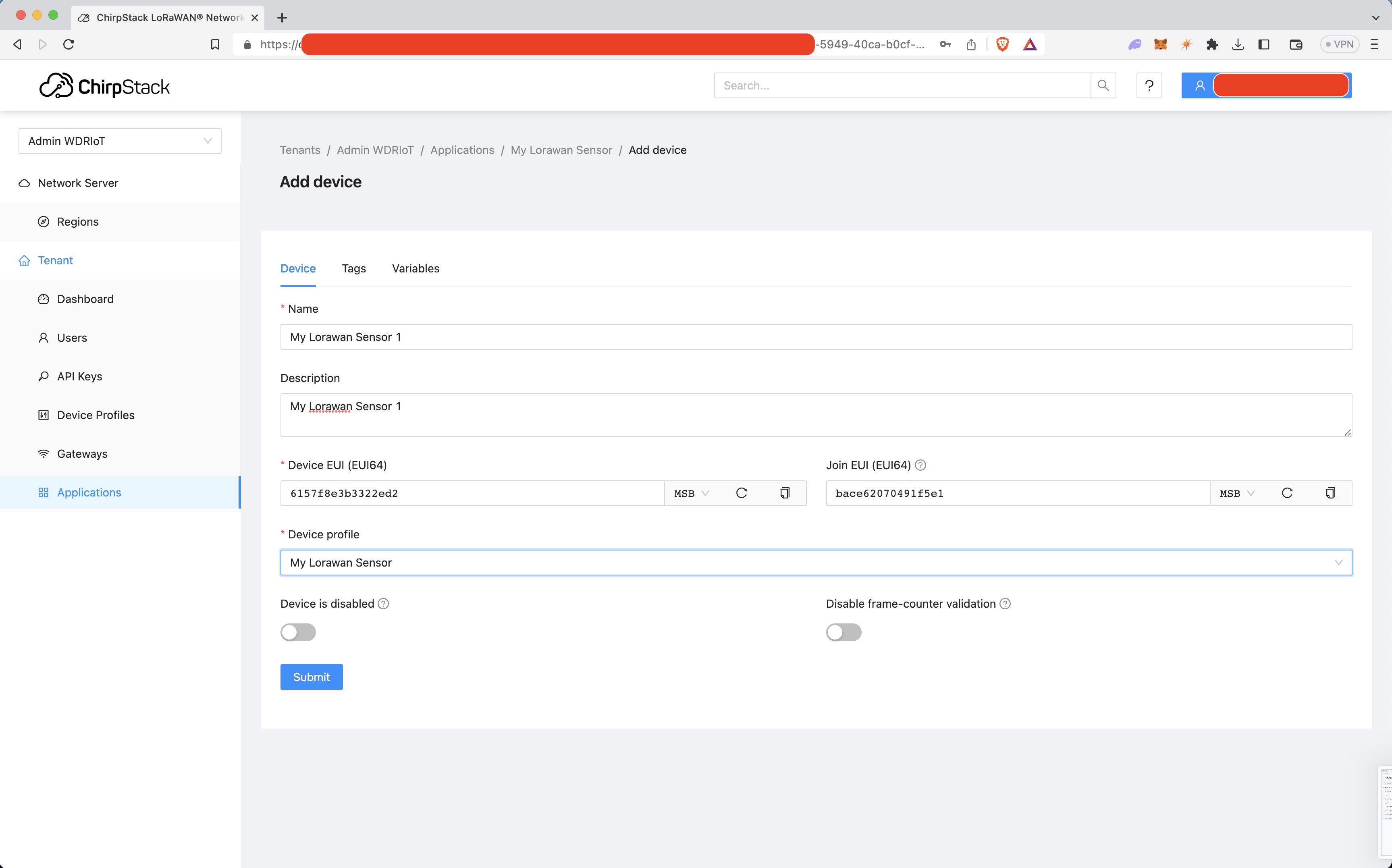

Fill in your device details and select the device profile you made earlier. A Device EUI can be entered from a pre-provisioned device, or pressing the ↻ button will generate a fresh EUI.
The AppKey will be shown in the next step, don't worry about finding it yet.



Click Submit when done.

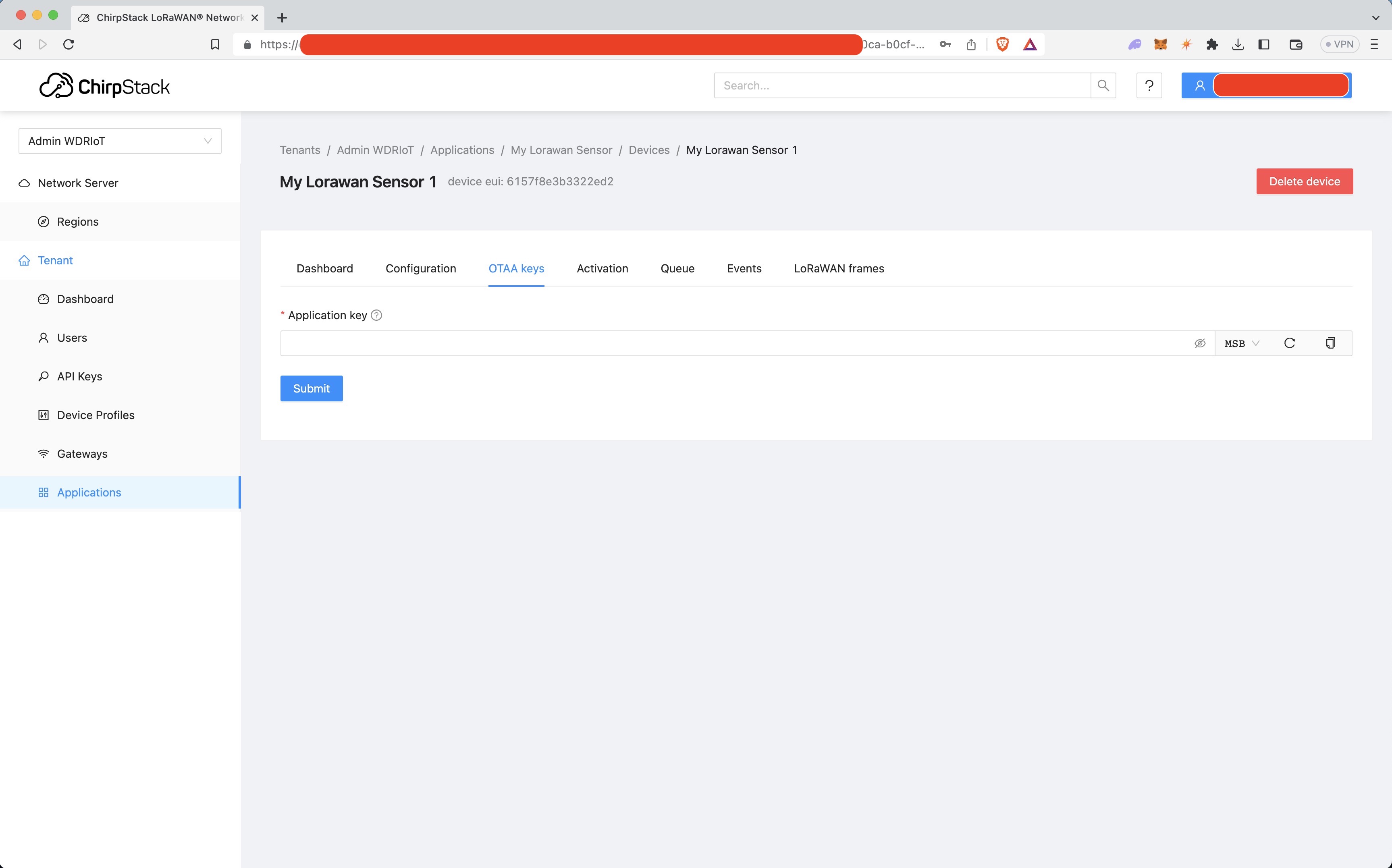

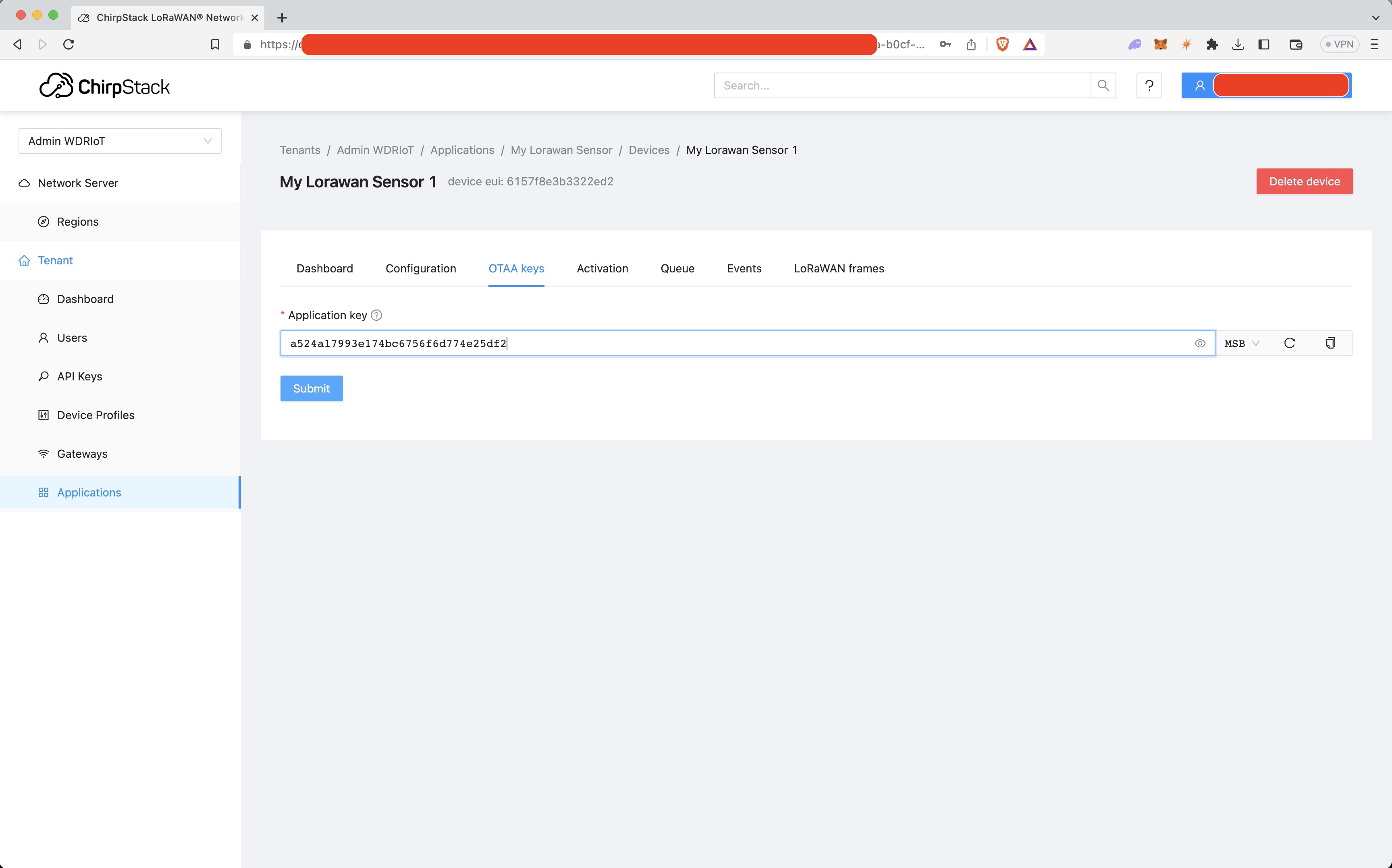

Enter the application key or generate a new one by pressing the ↻ button.



Click Submit once you enter the application key.

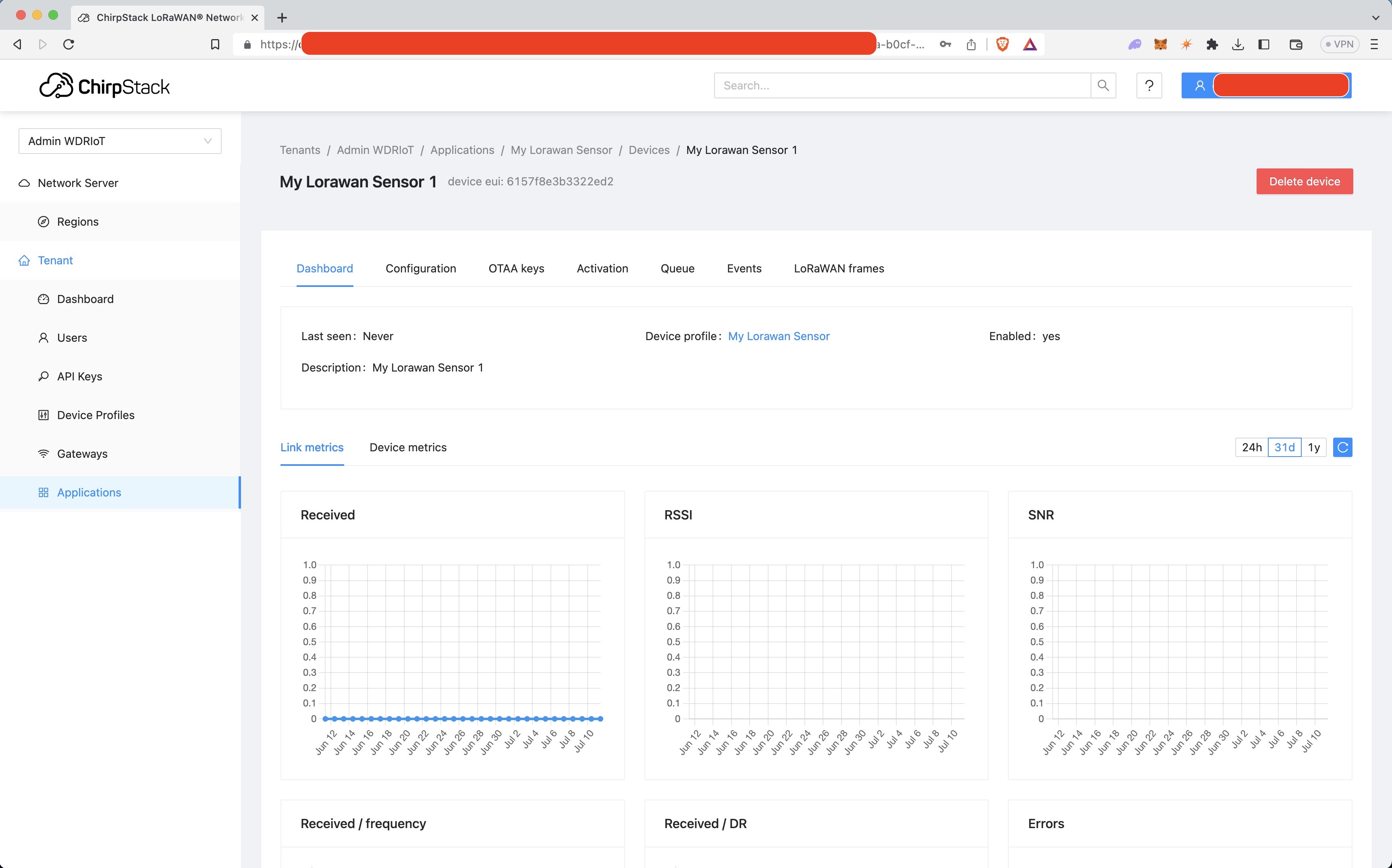

Your device should be created and listed in the application. The LoRaWAN frames tab will display a live view of payloads being delivered to the LNS.
Additional devices can be added to the existing Application.
